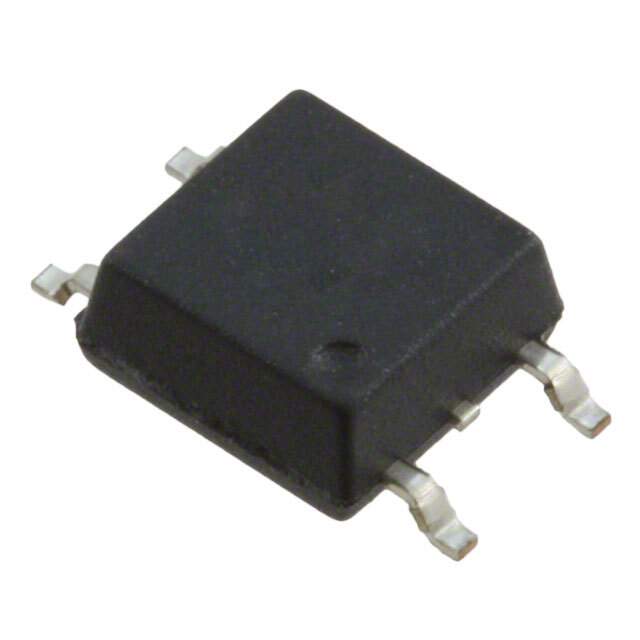

The ASSR-1218-003E is a solid-state relay (SSR) manufactured by Broadcom Limited. It is designed for applications requiring reliable and efficient switching, particularly for high-voltage or high-current loads. SSRs offer advantages over electromechanical relays, such as longer lifespan, faster switching speeds, and reduced electromagnetic interference.

Applications:

• Industrial automation: Used in industrial control systems for switching motors, heaters, and other heavy loads.
• Power distribution: Employed in power distribution panels and switchgear for switching circuits.
• Lighting control: Suitable for controlling high-intensity lighting systems in commercial and industrial settings.
• Motor control: Used in motor starters and variable frequency drives (VFDs) for controlling motor speed and torque.
• HVAC systems: Employed for switching compressors, heaters, and fans in heating, ventilation, and air conditioning systems.

Features:

• High isolation voltage: Provides electrical isolation between the control and load circuits, enhancing safety.
• Zero-crossing detection: Reduces electromagnetic interference (EMI) and electrical noise by switching the load at the zero-crossing point of the AC waveform.
• High surge current capability: Can withstand high inrush currents, making it suitable for inductive loads.
• Low on-state resistance: Minimizes power dissipation and heat generation during operation.
• Fast switching speed: Enables rapid switching of loads, improving system response time.
• Through-hole package: Designed for easy mounting on printed circuit boards.

Benefits:

• Increased reliability: Solid-state design eliminates moving parts, resulting in a longer lifespan and reduced maintenance requirements.
• Reduced EMI: Zero-crossing detection minimizes electrical noise, improving system performance.
• Improved safety: High isolation voltage provides enhanced protection against electrical hazards.
• Faster switching speed: Enables more responsive control of loads.
• High current handling: Suitable for switching high-current loads without contact wear or degradation.

Additional Details:

The ASSR-1218-003E typically operates with an input voltage range of 3 to 32 VDC and can switch AC loads up to a specified voltage and current rating (e.g., 24 to 280 VAC, up to 3 Amps). The isolation voltage is typically several kilovolts. It is designed to meet industry standards for safety and performance, making it a reliable choice for a wide range of applications. Always consult the manufacturer's datasheet for the most accurate and up-to-date specifications.
