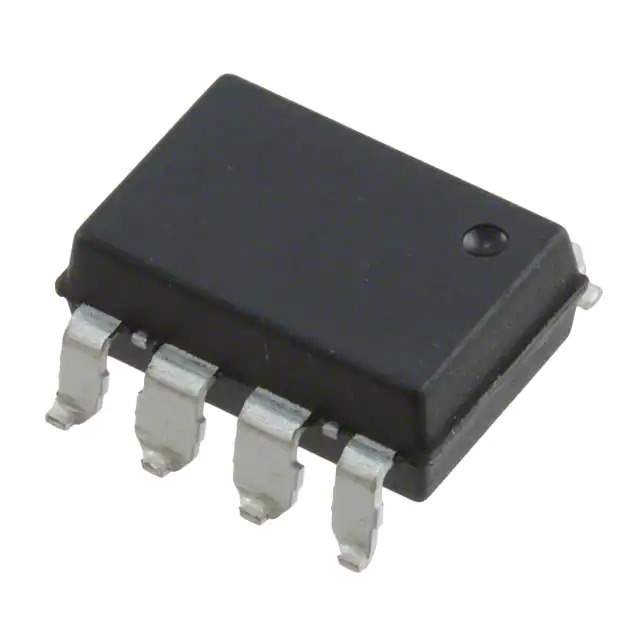

ASSR-1228-502E Real Image
Same model may have multiple batches, images only for reference.

ASSR-1228-502E

Part No ASSR-1228-502E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description SSR RELAY SPST-NO 200MA 0-60V / Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Broadcom Limited
Series ASSR
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.3VDC
Voltage - Load 0 V ~ 60 V
Load Current 200 mA
On-State Resistance (Max) 10 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-DIP Gull Wing
Base Product Number ASSR-1228
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 565006-ASSR-1228-502E
Ultra Librarian 3D Model Ultra Librarian ASSR-1228-502E CAD Model

Description

The ASSR-1228-502E is a solid-state relay from Broadcom Limited.

  • Configuration: single-pole, single-throw (SPST) normally open (NO)
  • Applications: AC and DC
  • Maximum on-state resistance: 10 Ohms
  • Load current: up to 200 mA
  • Voltage input: 1.3VDC
  • Load voltage range: 0V to 60V
  • Mounting: surface mountable
  • Package: 8-SMD
  • Termination style: gull wing
  • Series: ASSR series
  • Packaging: tape and reel
  • Status: active
  • Applications: industrial control systems, telecommunications, and automotive electronics
