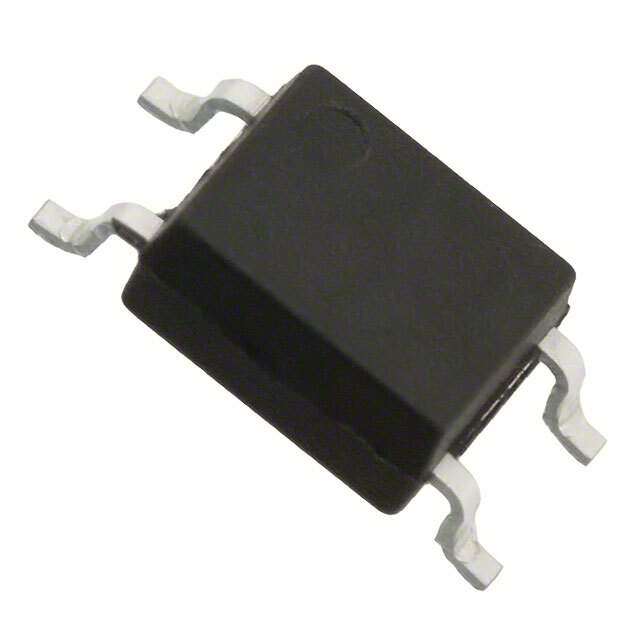

HCPL-354-06AE Real Image HCPL-354-06AE Real Image
Same model may have multiple batches, images only for reference.
HCPL-354-06AE Real Image HCPL-354-06AE Real Image
HCPL-354-06AE Real Image HCPL-354-06AE Real Image
Same model may have multiple batches, images only for reference.

HCPL-354-06AE

Part No HCPL-354-06AE
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANS 4MINIFLAT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 1mA
Maximum DC Current Transfer Ratio 150% @ 1mA
Rise and Fall Time 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 016874-HCPL-354-06AE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name HCPL-354
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin China, Singapore
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HCPL-354-06AE CAD Model

Description

The Broadcom Limited HCPL-354-06AE is an isolator that comes in a mini-flat package.

  • Maximum Output Voltage: 35V
  • Channel Output Current: 50mA
  • Operating Temperature: -55°C to 100°C
  • Isolation Voltage: 3750Vrms
  • Minimum DC Current Transfer Ratio: 50% at 1mA
  • Popularity: High
  • Halogen-Free: No
  • Compliant: No
  • Estimated EOL Date: 2026
  • Output Type: Transistor
  • Input Type: AC/DC
