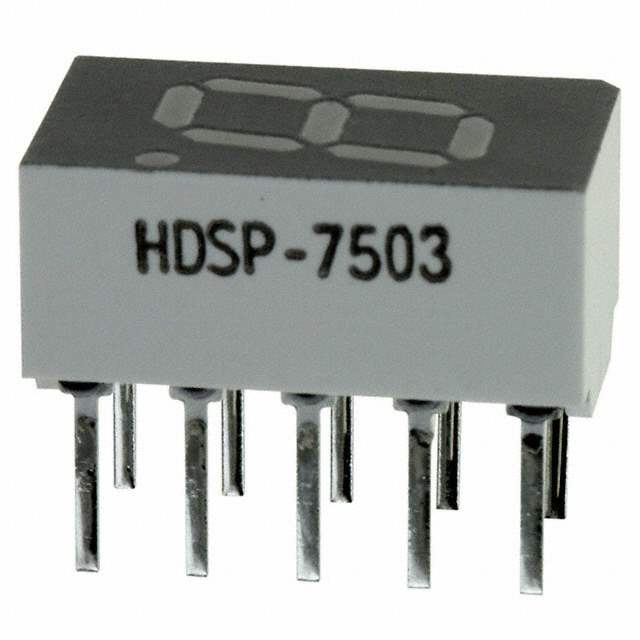

HDSP-7503 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7503

Part No HDSP-7503
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 7.6MM CC HE RED RHD
Datasheet
HDSP-7503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Forward Voltage 2V
Current - Test 20mA
Millicandela Rating 5.39mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.200", 5.08mm)
Win Source Part Number 068025-HDSP-7503
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HDSP-7503 CAD Model

Description

The HDSP-7503 is a red 7-segment display manufactured by Broadcom Limited. It has a forward voltage of 2V and a millicandela rating of 5.39mcd. The device is available in tube/rail packaging and has a common cathode pin. The display is designed for use in optoelectronic applications and has a digit/alpha size of 0.30 inches (7.62mm). The device is available with Win Source Part Number 068025-HDSP-7503.
