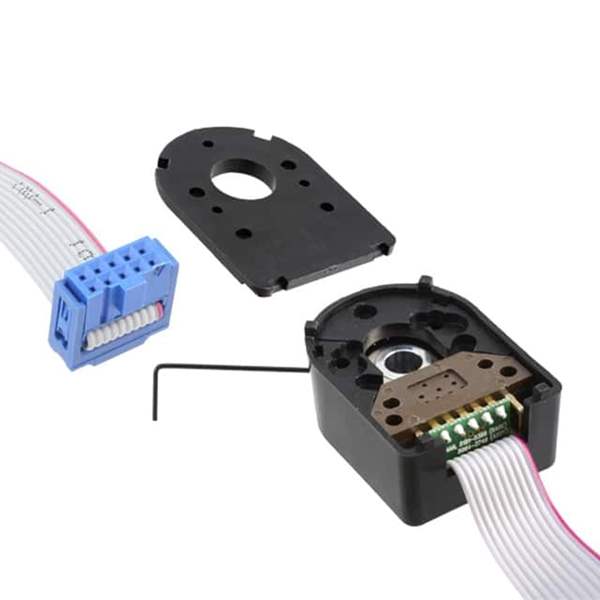

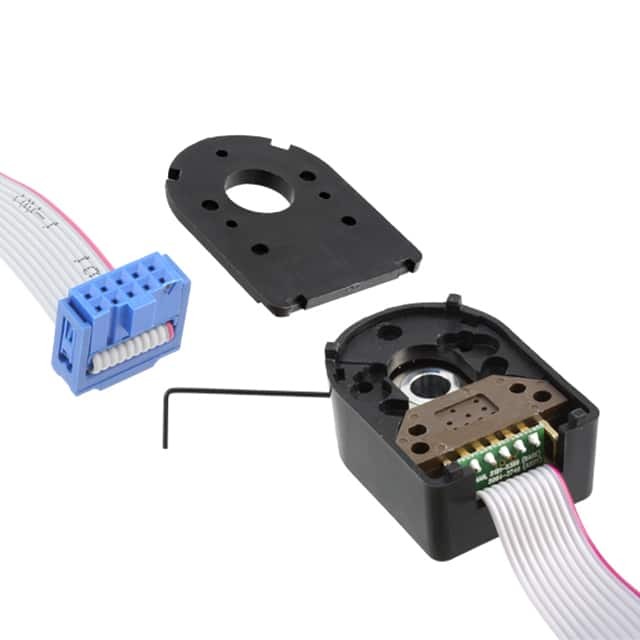

HEDL-5540#A12
Same model may have multiple batches, images only for reference.

HEDL-5540#A12

Part No HEDL-5540#A12
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Broadcom Limited
Series HEDL
Package Bulk
Product Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 6mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Cable with Connector
Base Product Number HEDL-5540
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920130-HEDL-5540#A12
Ultra Librarian 3D Model Ultra Librarian HEDL-5540#A12 CAD Model

Description

The HEDL-5540#A12 is an industrial encoder sensor manufactured by Broadcom Limited.

  • Applications: precise motion control
  • Termination Style: cable and connector
  • Orientation: vertical
  • Supply Voltage: 5V
  • Output Type: quadrature with index (incremental)
  • Actuator Type: 6mm open center
  • Built-in Switch: no
  • Encoder Type: optical
  • Pulses per Revolution: 500
  • Mounting: chassis mount and motor applications
  • Series: HEDL
  • Package: bulk
  • Standard Package: 20 pieces
  • Status: active product
