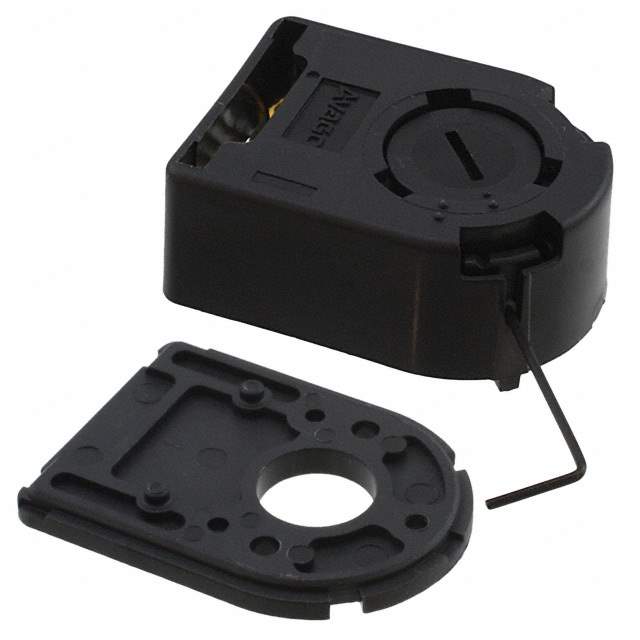

HEDS-5540#C06 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5540#C06

Part No HEDS-5540#C06
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 3CH 100CPR 1/4" / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 100CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 100
Operating Supply Voltage 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775869-HEDS-5540#C06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5540
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5540#C06 CAD Model

Description

The Broadcom Limited HEDS-5540#C06 is a vertical chassis mount, motor encoder type optical transducer.

  • Actuator Type: 1/4" open center
  • Output Type: Quadrature with an index (incremental)
  • Supply Voltage: 5V
  • Pulses per Revolution: 100
  • Introduction Date: May 31, 2005
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
