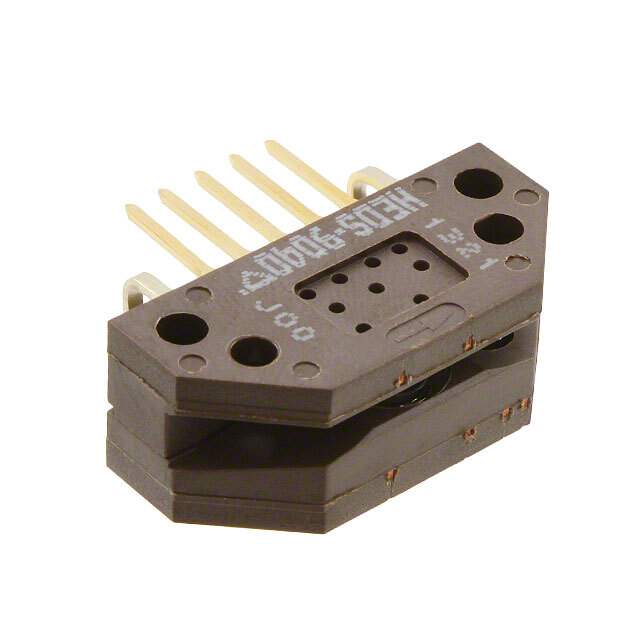

HEDS-9040#J00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9040#J00

Part No HEDS-9040#J00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 3CH 1024CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 1024
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 068036-HEDS-9040#J00
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Industrial, Automation & Process Control
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HEDS-9040#J00 CAD Model

Description

The Broadcom Limited 068036-HEDS-9040#J00 is an optical encoder.

  • Output Type: Quadrature
  • Switch: No built-in switch
  • Termination Style: Terminal pins
  • Mounting: Chassis mount
  • Encoder Type: Optical
  • Pulses per Revolution: 1024
  • Application: Computers, computer peripherals, industrial automation, and process control
  • Package Quantity: 100
