Same model may have multiple batches, images only for reference.

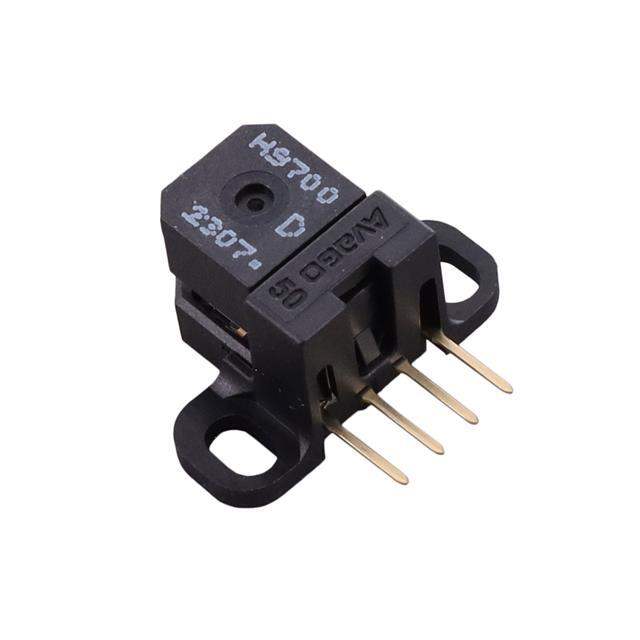

HEDS-9700#D50 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9700#D50

Part No HEDS-9700#D50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 192CPR STD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 192
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 139156-HEDS-9700#D50
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian HEDS-9700#D50 CAD Model

Description

The HEDS-9700#D50 is an optical encoder manufactured by Broadcom Limited.

  • Encoder Type: Optical
  • Termination Style: Terminal pins
  • Mounting: Chassis mount
  • Output Type: Quadrature (incremental)
  • Switch: No built-in switch
