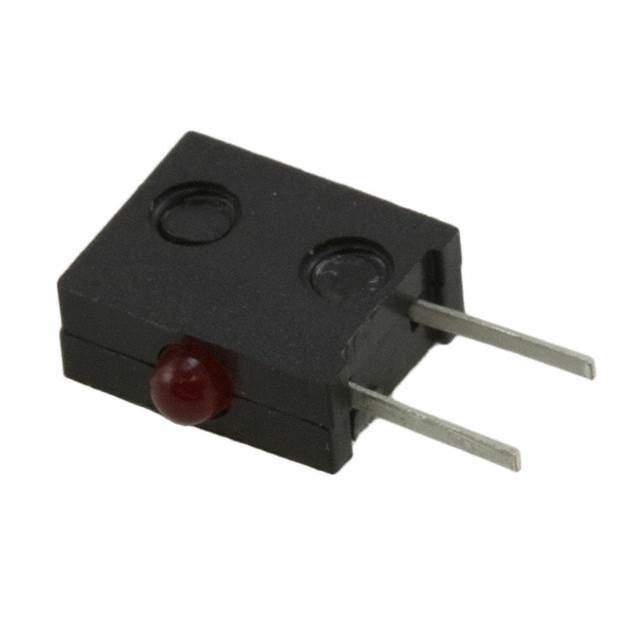

HLMP-6300-F0010 Real Image
Same model may have multiple batches, images only for reference.

HLMP-6300-F0010

Part No HLMP-6300-F0010
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED DOME 635NM DIFF HER RA AXIAL / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.8V 10mA Round with Domed Top 1.91mm Dia Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Broadcom Limited
Packaging Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 10mA
Millicandela Rating 10mcd
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 1.91mm Dia
Voltage Rating 1.8V
Mounting Through Hole, Right Angle
Base Product Number HLMP-6300
RoHS Status ROHS3 Compliant
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 516-2105,HLMP6300F0010,516-2105-2-ND,516-2105-2
Standard Package 1,000
Win Source Part Number 1331801-HLMP-6300-F0010
Ultra Librarian 3D Model Ultra Librarian HLMP-6300-F0010 CAD Model

Description

The HLMP-6300-F0010 is an LED circuit board indicator from Broadcom Limited.

  • Packaging: Bulk
  • Standard Package: 1,000
  • Color: Red
  • Voltage: 1.8V
  • Millicandela Rating: 10mcd
  • Current: 10mA
  • Wavelength Peak: 635nm
  • Type: Diffused, Tinted LED
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
