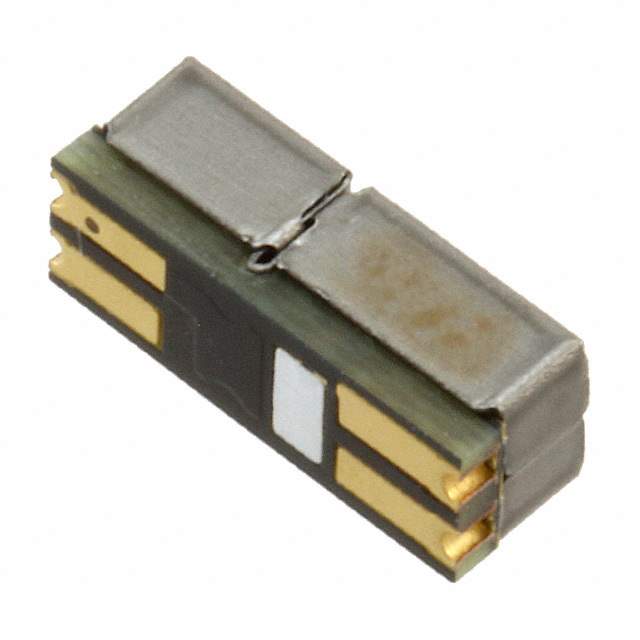

HSDL-9100-024 Real Image
Same model may have multiple batches, images only for reference.

HSDL-9100-024

Part No HSDL-9100-024
Manufacturer Broadcom Limited
Catalog Optical Sensors - Reflective - Analog Output
Description Surface-Mount Proximity Sensor | IC PROX SENSOR ANLG OUT REFL SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Packaging Reel
Sensing Distance 0.197" (5mm)
Sensing Method Reflective
Current - Collector (Ic) (Maximum) 100mA
Current - DC Forward (If) (Maximum) 100mA
Output Type Photodiode
Response Time 6μs, 6μs
Mounting Style SMD
Manufacturer Package 4-SMD
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1181811-HSDL-9100-024
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HSDL-9100-024 CAD Model

Description

The HSDL-9100-024 reflective photodiode is designed for sensing applications.

  • Sensing Distance: 0.197 inches (5mm)
  • Response Time: 6μs
  • Maximum Forward Current (If): 100mA
  • Maximum Collector Current (Ic): 100mA
  • Mounting: Surface Mount
  • Package: 4-SMD
  • Manufacturer: Broadcom Limited
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
