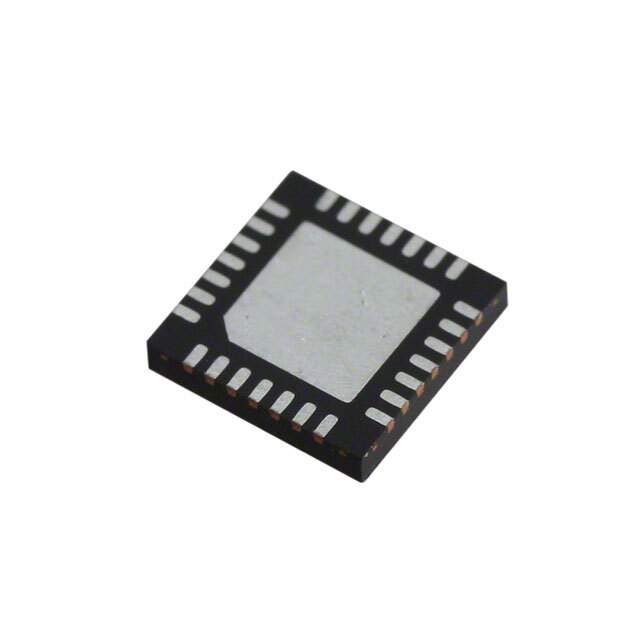

MGA-43228-BLKG Real Image
Same model may have multiple batches, images only for reference.

MGA-43228-BLKG

Part No MGA-43228-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description 2.3–2.5 GHz 29dBm High Linearity Wireless Data Power Amplifi er | IC AMP 802.16 2.3-2.5GHZ 28QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Strip
Status Obsolete
Frequency 2.3GHz ~ 2.5GHz
P1dB 35.5dBm
Gain 38.5dB
Noise Figure 2.1dB
RF Type 802.16 WiMAX
Supply Voltage (V) 5V
Supply Current 500mA
Test Frequency 2.4GHz
Manufacturer Package 28-VFQFN Exposed Pad
Supplier Device Package 28-QFN (5x5)
Manufacturer Pack Quantity 100
MSL Level 2A (4 Weeks)
Win Source Part Number 1221848-MGA-43228-BLKG
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MGA-43228-BLKG CAD Model

Description

The Broadcom Limited MGA-43228-BLKG is an RF amplifier suitable for use in 802.16 WiMAX applications. The device has a test frequency of 2.4GHz, and the frequency range is between 2.3GHz to 2.5GHz. Broadcom Limited

  • Test Frequency: 2.4GHz
  • Frequency Range: 2.3GHz to 2.5GHz
  • Gain: 38.5dB
  • Noise Figure: 2.1dB
  • P1dB: 35.5dBm
  • Supply Current: 500mA
  • Package: 28-VFQFN exposed pad package
  • Supply Voltage: 5V
  • Status: Obsolete
  • Supply and Demand Status: Limited
