Same model may have multiple batches, images only for reference.

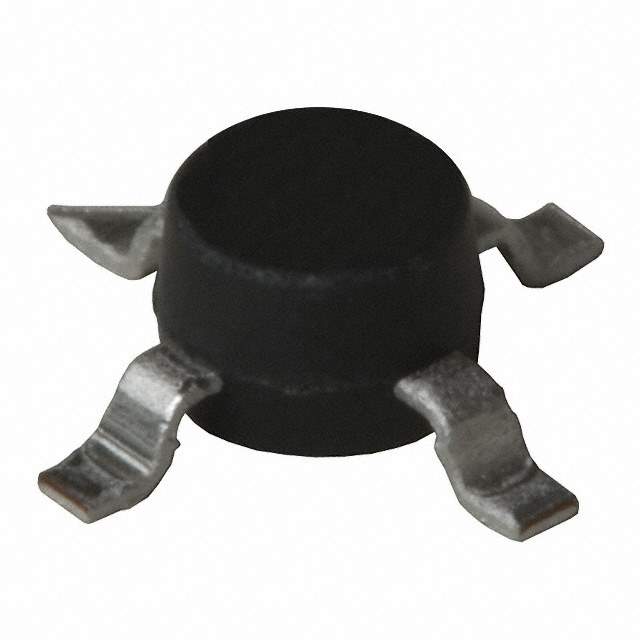

MSA-0886-TR1 Real Image
Same model may have multiple batches, images only for reference.

MSA-0886-TR1

Part No MSA-0886-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 65MA 86-SMD
Datasheet
MSA-0886-TR1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 4GHz
P1dB 12.5dBm (17.8mW)
Gain 22.5dB
Noise Figure 3.3dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 6.2 V to 9.4 V
Operating Supply Current 65mA
Test Frequency 1GHz
Case / Package 86 Plastic Package
Win Source Part Number 123687-MSA-0886-TR1
Ultra Librarian 3D Model Ultra Librarian MSA-0886-TR1 CAD Model

Description

The Broadcom Limited 123687-MSA-0886-TR1 is a RF/IF and RFID product that is designed for use in ISM, PCS, WLL, and 802.16/WiMax RF types.

  • Frequency Range: 0Hz to 4GHz
  • Test Frequency: 1GHz
  • Gain: 22.5dB
  • Noise Figure: 3.3dB
  • P1dB: 12.5dBm (17.8mW)
  • Package: reel-TR
  • Status: obsolete (EOL)
  • Package Type: 86 plastic
  • Operating Supply Voltage: 6.2 V to 9.4 V
  • Operating Supply Current: 65mA
