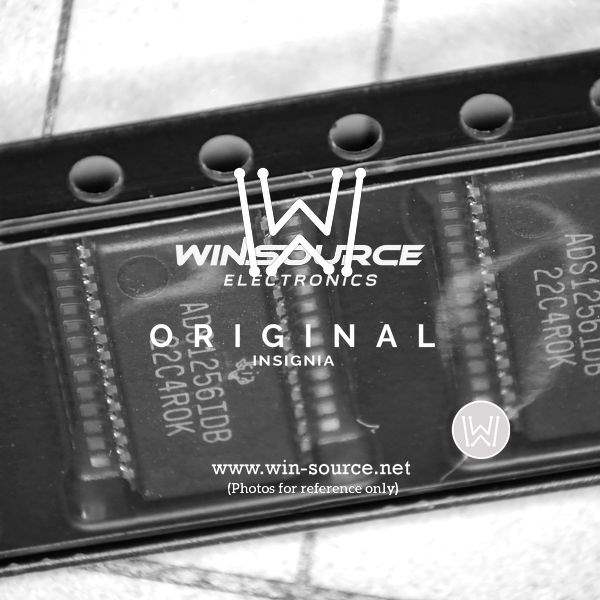

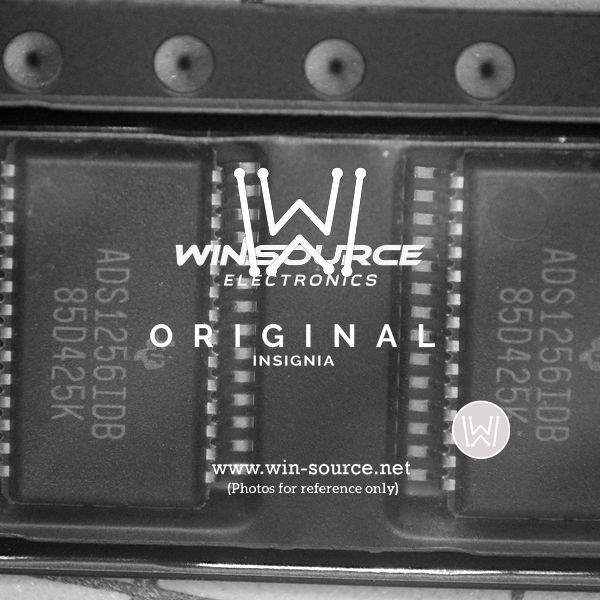

The ADS1256IDB is a high-precision, low-noise, 24-bit analog-to-digital converter (ADC) from Texas Instruments (formerly Burr-Brown). It is designed for demanding measurement applications where accuracy and resolution are critical. This ADC offers excellent performance for applications requiring high dynamic range and low distortion.

Applications:

• Weigh scales
• Strain gauge measurements
• Industrial process control
• Medical instrumentation
• High-resolution data acquisition systems
• Seismic monitoring
• Gas chromatography

Features:

• 24-Bit Resolution: Provides high precision and accuracy in measurements.
• Low Noise: Ensures clean and accurate data acquisition.
• Data Rates up to 30kSPS: Supports a wide range of sampling rates.
• INL: 0.0015% of FSR (typ)
• Programmable Gain Amplifier (PGA): Integrated PGA with gains from 1 to 64 allows for direct connection to low-level signals.
• Six Differential or Eight Single-Ended Inputs: Offers flexibility in connecting various signal sources.
• SPI Interface: Simple and easy communication with microcontrollers.
• Digital Filter: Integrated digital filter enhances noise rejection.
• Simultaneous 50 Hz and 60 Hz Rejection
• Operating Temperature Range: -40°C to +85°C

Benefits:

• High Accuracy: Enables precise measurements and improved system performance.
• Versatile Input Configuration: Adapts to a wide range of sensor types and signal levels.
• Simplified System Design: Integrated PGA and digital filter reduce the need for external components.
• Reduced Noise: Low-noise performance ensures reliable data acquisition in noisy environments.
• Easy Integration: SPI interface allows for seamless integration with microcontrollers and digital systems.

Additional Details:

The ADS1256IDB operates from a single 5V analog supply and a 3.3V to 5V digital supply. It features a flexible input multiplexer that can be configured for either six differential or eight single-ended input channels. The integrated PGA allows for direct connection to low-level signals, eliminating the need for external amplification in many applications. The digital filter provides excellent noise rejection, further enhancing the accuracy of the measurements. The device is available in a small TSSOP-24 package, making it suitable for space-constrained applications.
