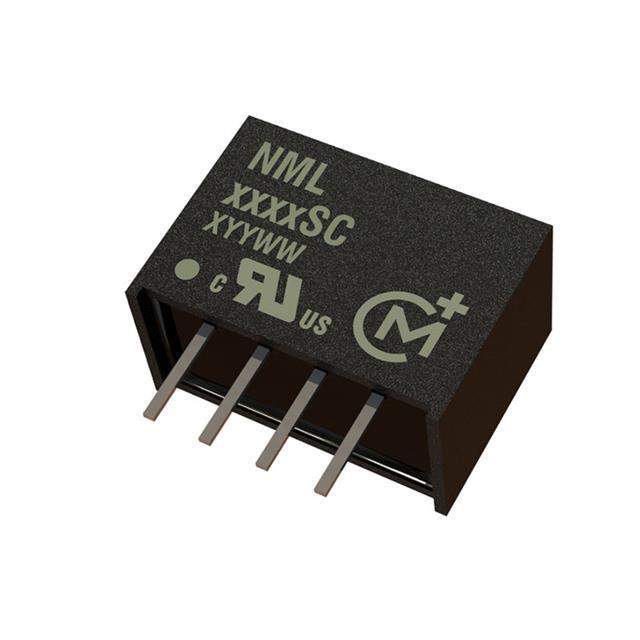

The NML0505S is a DC-DC converter manufactured by C&D Technologies, designed for providing isolated power in a compact package. It is a reliable solution for applications requiring electrical isolation and voltage conversion.

Applications:

• Industrial control systems: Powering isolated sensors and control circuits.
• Instrumentation: Providing isolated power for measurement equipment.
• Telecommunications: Powering isolated telecom interfaces.
• Medical equipment: Ensuring patient safety through electrical isolation.
• Aerospace: Providing isolated power in avionic systems.

Features:

• Isolation voltage: High isolation voltage to prevent ground loops and ensure safety.
• Compact size: Small footprint for space-constrained applications.
• Wide input voltage range: Accommodates various input voltage levels.
• High efficiency: Minimizes power loss and heat generation.
• Low ripple and noise: Provides clean and stable output voltage.
• Short circuit protection: Protects the converter and the load from damage.
• Overload protection: Prevents damage from excessive load current.

Benefits:

• Improved safety: Electrical isolation protects equipment and personnel.
• Reduced noise: Isolation minimizes ground loops and noise coupling.
• Increased reliability: Robust design ensures reliable operation in harsh environments.
• Simplified design: Easy to integrate into existing systems.
• Space saving: Compact size allows for higher density designs.

Technical Specifications:

While specific technical specifications such as input voltage range, output voltage, output current, and isolation voltage vary, the NML0505S generally offers an input voltage around 5VDC, an output voltage around 5VDC, and an isolation voltage of several kVDC. Consult the datasheet for precise values. The operating temperature range is typically industrial grade, suitable for demanding environments. The package is usually a SIP or DIP package for easy PCB mounting.
