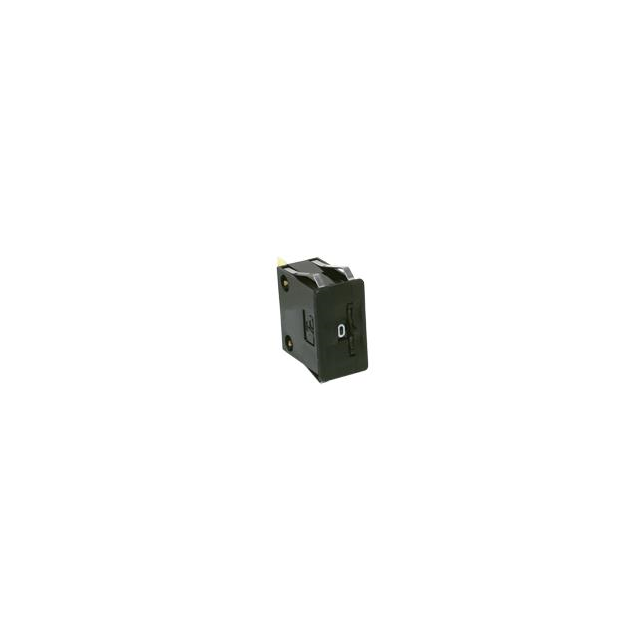

312100N03 Real Image
Same model may have multiple batches, images only for reference.

312100N03

Part No 312100N03
Manufacturer C&K Components
Catalog Thumbwheel Switches
Description SWITCH THUMB BCD 0.1A 120V/28V / Thumbwheel Switch BCD 0.1A @ 120VAC/28VDC Panel Mount, Snap-In
Datasheet
312100N03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Thumbwheel Switches
Mfr C&K
Series 3
Package Bulk
Product Status Obsolete
Output Code BCD
Read Out 0 ~ 9
Number of Sections 1
Actuator Type Thumbwheel
Contact Rating @ Voltage 0.1A @ 120VAC/28VDC
Contact Material Copper Alloy
Mounting Type Panel Mount, Snap-In
Termination Style PC Pin
End Caps Included
Section Width 0.315" (8.00mm)
Panel Cutout Dimensions Rectangular - 31.00mm x 16.28mm
Features Dust Lens, Sealed Contacts
Temperature Range - Operating -40°C ~ 65°C
Depth Behind Flange 37.85mm
Housing Material Acrylonitrile Butadiene Styrene (ABS)
Color Black
Electrical Life 100,000 Cycles
Base Product Number 312100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-312100N03
Standard Package 1
Win Source Part Number 965341-312100N03
Ultra Librarian 3D Model Ultra Librarian 312100N03 CAD Model

Description

This thumbwheel switch from C&K has a Win Source Part Number of 965341-312100N03.

  • Series: 3
  • Termination Style: PC pin
  • Color: black
  • Features: dust lens and sealed contacts
  • Contact Finish: not provided
  • Packaging: bulk
  • Contact Material: copper alloy
  • Housing Material: acrylonitrile butadiene styrene (ABS)
  • Standard Package: 1
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS Code: 8536.50.9065
  • Status: obsolete
