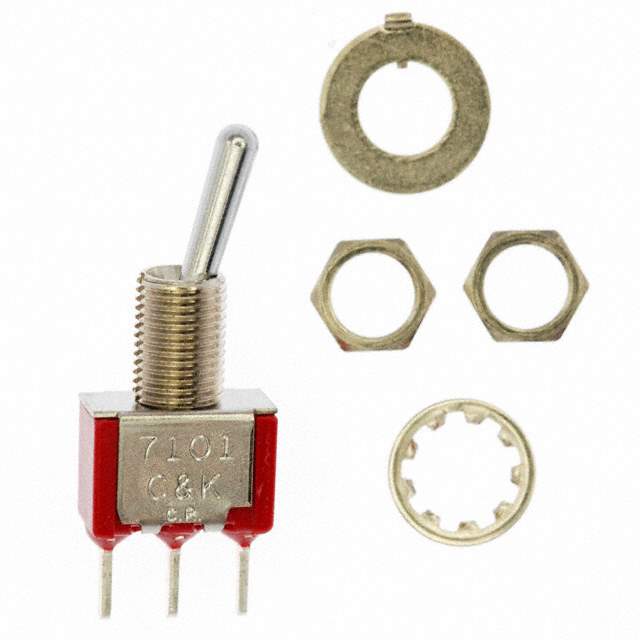

7101SYCQE Real Image
Same model may have multiple batches, images only for reference.

7101SYCQE

Part No 7101SYCQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V / 7000 Series Miniature Toggle Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Bulk
Mounting Style Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120V
Voltage Rating - DC 28V
Actuator Type Standard Round
Actuator Length 10.67mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813742-7101SYCQE
Ultra Librarian 3D Model Ultra Librarian 7101SYCQE CAD Model

Description

The C&K 7101SYCQE panel mount switch is perfect for those who want a reliable and sturdy switch.

  • Terminals: Epoxy-sealed
  • Voltage Rating: 28V
  • AC Voltage Rating: 120V
  • Current Rating: 5A (AC/DC)
  • Temperature Range: -30°C ~ 85°C
