BD12 C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

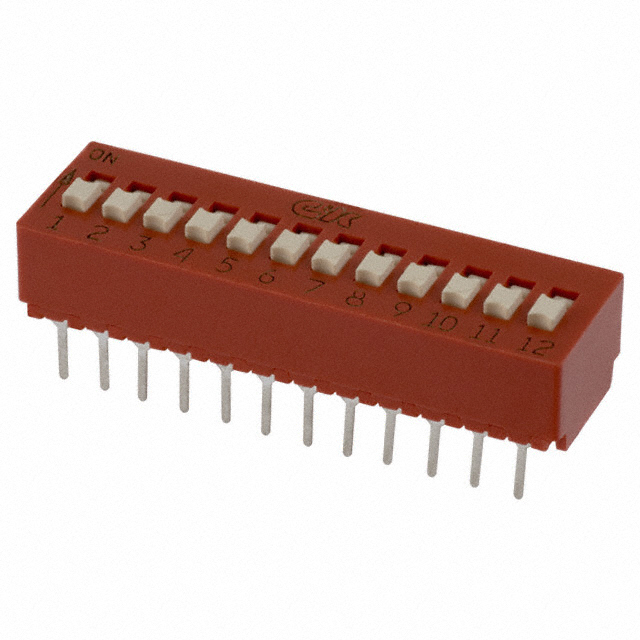

BD12

Part No BD12
Manufacturer C&K Components
Catalog DIP Switches
Description Dip Switch SPST 12 Position Through Hole Slide (Standard) Actuator 100mA 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Series BD
Packaging Tube
Circuit SPST
Number of Positions 12
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.297" (7.54mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 1.280" (32.51mm)
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1479064-BD12
Ultra Librarian 3D Model Ultra Librarian BD12 CAD Model
