Same model may have multiple batches, images only for reference.

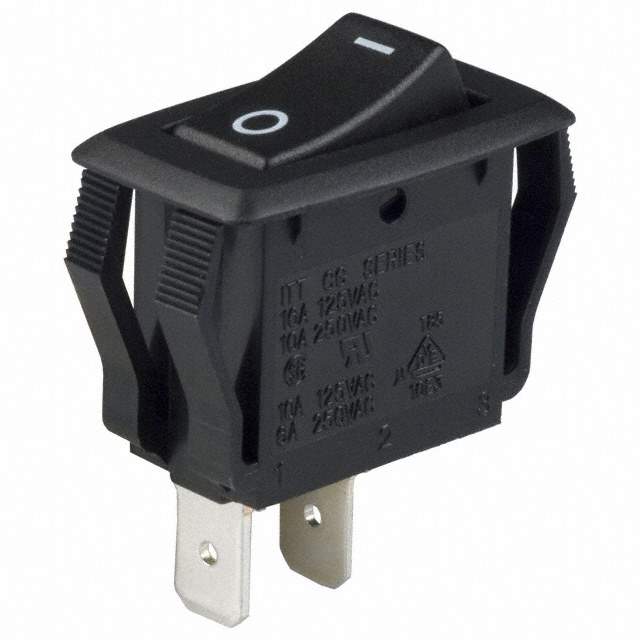

CG102J12S205HQF Real Image
Same model may have multiple batches, images only for reference.

CG102J12S205HQF

Part No CG102J12S205HQF
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER SPST 16A 125V  /  Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
Datasheet
CG102J12S205HQF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr C&K
Series CG
Package Tray
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 27.80mm x 13.80mm
Temperature Range - Operating -20°C ~ 85°C
Electrical Life 10,000 Cycles
Base Product Number CG102J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names *CG102J12S205HQF,-CG102J12S205HQF,401-1322
Standard Package 50
Win Source Part Number 1004229-CG102J12S205HQF
Ultra Librarian 3D Model Ultra Librarian CG102J12S205HQF CAD Model

Description

The C&K CG102J12S205HQF rocker switch is a single-pole, single-throw switch with a circuit of SPST. Bold the product name (e.g., CG102J12S205HQF → CG102J12S205HQF) and manufacturer (e.g., C&K → C&K).

  • Circuit: SPST
  • Termination Style: Quick-Connect
  • Pitch: 0.250-inch (6.3 mm)
  • Mounting: Panel, Snap-In
  • Actuator Type: Concave (Curved)
  • Actuator Marking: O I
  • Switch Function: On-Off
  • Actuator/Cap Color: Black
  • Voltage Rating (AC): 125 V
  • Current Rating: 16A
  • Electrical Life: 10,000 cycles
  • Mounting Type: Panel Mount
  • Win Source Part Number: 1004229-CG102J12S205HQF
  • Panel Cutout: 27.80 mm x 13.80 mm
  • RoHS Compliant: Yes
