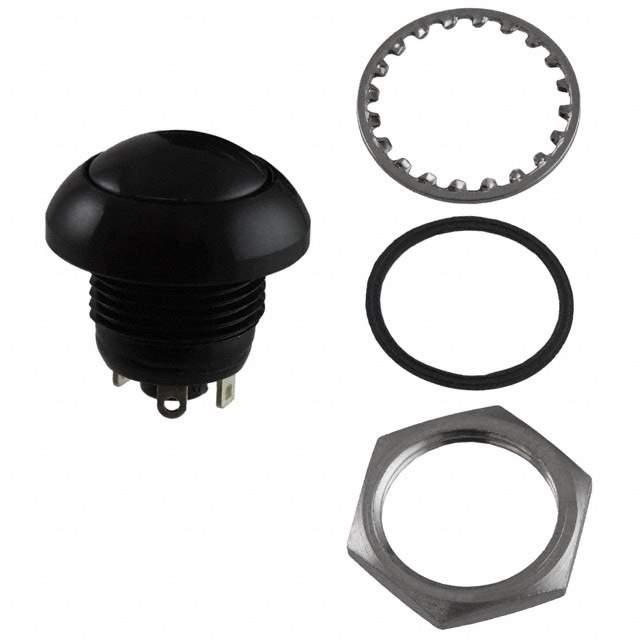

NP8S2D203QE Real Image
Same model may have multiple batches, images only for reference.

NP8S2D203QE

Part No NP8S2D203QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 5A 32V / Pushbutton Switch SPDT Standard Panel Mount, Front
Datasheet
NP8S2D203QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series NP
Package Bulk
Mounting Type Panel Mount, Front
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (DC)
Voltage Rating - DC 32 V
Actuator Type Round, Button, Domed
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Solder Lug
Ingress Protection IP68 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 12.30mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number NP8S2D
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1351962-NP8S2D203QE
Ultra Librarian 3D Model Ultra Librarian NP8S2D203QE CAD Model

Description

The NP8S2D203QE pushbutton switch is a SPDT circuit switch that is on-mom in switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round, Button, Domed
  • Color: Black
  • Electrical Life: 25,000 Cycles
  • Mechanical Life: 1,000,000 Cycles
  • Seal: Epoxy Sealed
  • Ingress Protection: IP68
  • Voltage Rating: 32V DC
  • Current Rating: 5A (DC)
  • Mounting Type: Panel Mount, Front
  • Panel Cutout Dimension: 12.30mm Dia.
  • Temperature Range: -40°C ~ 85°C
  • Manufacturer: C&K
