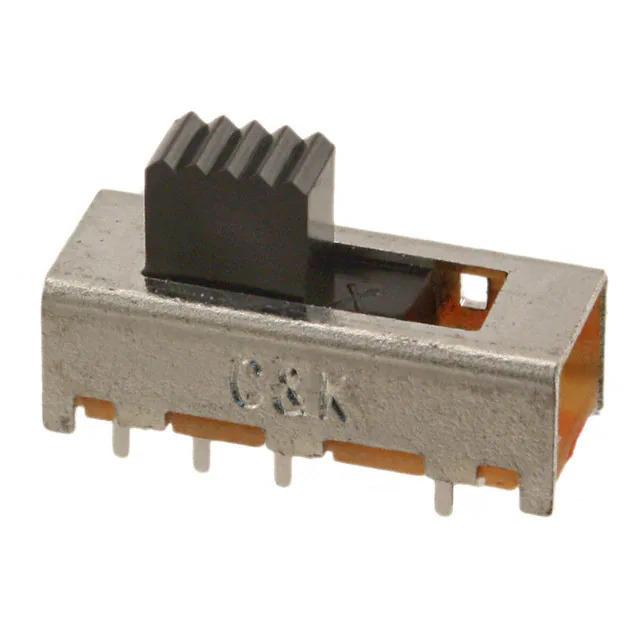

Same model may have multiple batches, images only for reference.
OS103012MU2QP1 C&K Components
Same model may have multiple batches, images only for reference.

OS103012MU2QP1

Part No OS103012MU2QP1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SP3T 200MA 30V
Datasheet
OS103012MU2QP1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series OS
Package Bulk
Product Status Active
Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.50mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number OS103012
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376234-OS103012MU2QP1
Ultra Librarian 3D Model Ultra Librarian OS103012MU2QP1 CAD Model

Description

The C&K OS103012MU2QP1 is a slide switch.

  • Manufacturer: C&K
  • Product: OS103012MU2QP1
  • Mounting Type: Through-Hole
  • Circuit: SP3T
  • Switch Function: On-On-On
  • Current Rating: 200mA (DC)
  • Voltage Rating: 30V
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Switch Travel: 2.50mm
  • Actuator Length: 4.00mm
  • Material: Polyoxymethylene (acetal) (POM)
