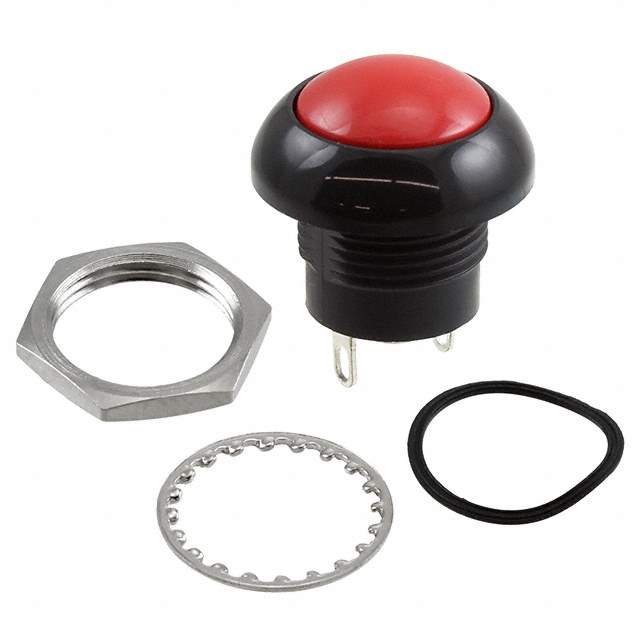

PNP8S3D2C03QE Real Image
Same model may have multiple batches, images only for reference.

PNP8S3D2C03QE

Part No PNP8S3D2C03QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 5A 32V / Switch Push Button N.O./N.C. SPDT Dome 5A 32VDC Momentary Contact Solder Lug Panel Mount Bulk
Datasheet
PNP8S3D2C03QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Series PNP
Packaging Bulk
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating 5A (DC)
Voltage Rating - DC 32V
Actuator Type Round, Button, Domed
Color - Actuator/Cap Red
Mounting Panel Mount, Front
Termination Style Solder Lug
Ingress Protection IP68 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 12.30mm Dia
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Win Source Part Number 772293-PNP8S3D2C03QE
Popularity Medium
Supply and Demand Status Limited
Family Name PNP
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PNP8S3D2C03QE CAD Model

Description

The C&K PNP8S3D2C03QE is a standard type SPDT switch from C&K.

  • Current Rating: 5A (DC)
  • Panel Cutout: 12.30mm diameter
  • Mounting Type: Front Panel
  • Actuator Type: Domed Round Button
  • Actuator/Cap Color: Red
  • Electrical Life: 25,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Sealing: Epoxy Sealed (Dust Tight, Waterproof)
  • Ingress Protection: IP68
  • Operating Temperature Range: -40°C to 85°C
  • Voltage Rating: 32V (DC)
