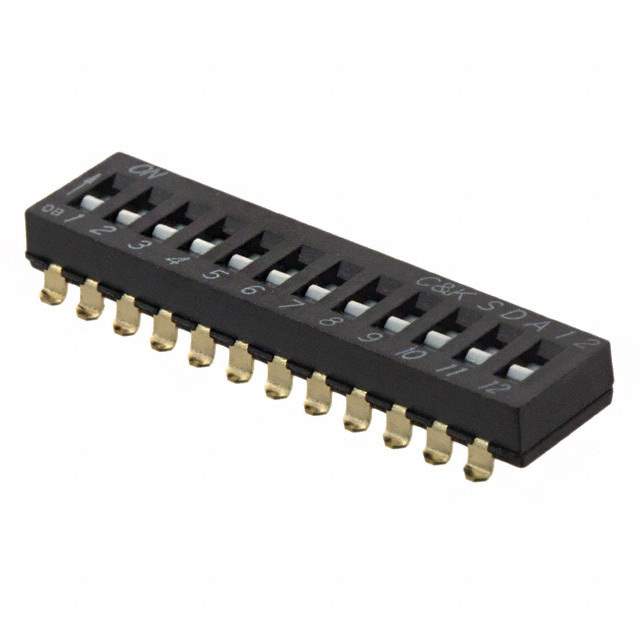

Same model may have multiple batches, images only for reference.

SDA12H0SBD

Name: SDA12H0SBD
Brand: C&K Components
SKU: 1233775
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SDA12H0SBD
Manufacturer	C&K Components
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 12 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet	SDA12H0SBD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>DIP Switches
Mfr	C&K
Series	SDA
Package	Tube
Circuit	SPST
Number of Positions	12
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Material	Beryllium Copper
Contact Finish	Gold
Height Above Board	0.175" (4.45mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	No
Temperature Range - Operating	-40°C ~ 85°C
Body Material	Polyphenylene Sulfide (PPS)
Length	1.279" (32.50mm)
Mechanical Life	1,000 Cycles
Electrical Life	1,000 Cycles
Base Product Number	SDA12H
Other Names	*SDA12H0SBD,CKN6107
Standard Package	14
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1233775-SDA12H0SBD
Ultra Librarian 3D Model	Ultra Librarian SDA12H0SBD CAD Model

Alternative Products

Description

The C&K 1233775-SDA12H0SBD is a DIP switch component that has 12 positions and is SPST circuit.

Manufacturer: C&K
Positions: 12
Circuit: SPST
Termination Style: Gull-Wing
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating: 25mA
Temperature Range: -40°C to 85°C
Mechanical Life: 1,000 cycles
