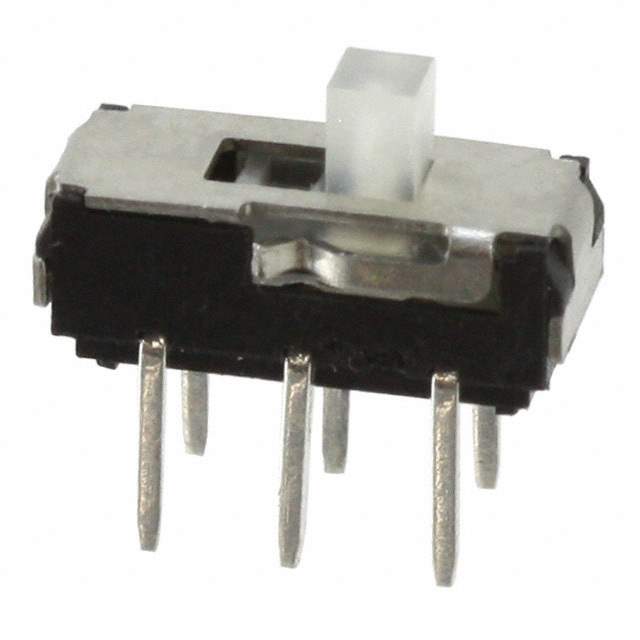

SS-22D0205-G 2 Real Image
Same model may have multiple batches, images only for reference.

SS-22D0205-G 2

Part No SS-22D0205-G 2
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 6V  /  Slide Switch DPDT Through Hole
Datasheet
SS-22D0205-G 2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series SS, COMAX
Package Bulk
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 80°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Electrical Life 10,000 Cycles
Operating Force 200gf
Base Product Number SS22D
Other Names *SS-22D0205-G 2,SS22D0205G2,SS-22D0205-G2,CKN10373
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1232957-SS-22D0205-G 2
Ultra Librarian 3D Model Ultra Librarian SS-22D0205-G 2 CAD Model

Description

The COMAX SS-22D0205-G 2 is a double-pole double-throw (DPDT) slide switch from the SS series.

  • Mounting: through-hole
  • Termination Style: PC pin
  • Actuator: polyamide (PA) and nylon
  • Actuator Length: 2.00mm
  • Switch Travel: 2.00mm
  • Operating Force: 200gf
  • Electrical Life: 10,000 cycles
  • Contact Material: copper alloy
  • Contact Finish: silver
  • Switch Function: On-On
  • Contact Timing: non-shorting (BBM)
  • Voltage Rating for DC: 6V
  • Current Rating: 300mA (DC)
  • Operating Temperature: -20°C to 80°C
  • RoHS Compliant: yes
  • Packaging: bulk
