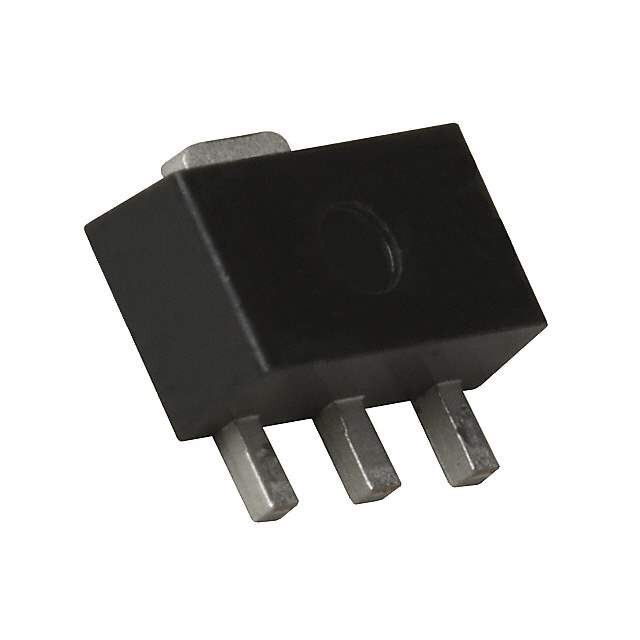

NE461M02-T1-AZ Real Image
Same model may have multiple batches, images only for reference.

NE461M02-T1-AZ

Part No NE461M02-T1-AZ
Manufacturer CEL
Catalog Transistors - FETs, MOSFETs - RF
Description RF TRANSISTOR NPN SOT-89
Datasheet
NE461M02-T1-AZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer CEL
Packaging Reel package
Part Status Obsolete(EOL)
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Maximum) 15V
Noise Figure (dB Typ @ f) 1.5dB ~ 2dB @ 500MHz ~ 1GHz
Gain 8.3dB
Power - Max 2W
DC Current Gain (hFE) (Minimum) @ Ic, Vce 60 @ 50mA, 10V
Current - Collector (Ic) (Maximum) 250mA
Operating Temperature Range 150°C (TJ)
Mounting SMD
Package TO-243AA
Manufacturer Package SOT-89
Win Source Part Number 762707-NE461M02-T1-AZ
Popularity Medium
Supply and Demand Status Limited
Family Name NE461M02
Introduction Date December 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian NE461M02-T1-AZ CAD Model

Description

The NE461M02-T1-AZ is a NPN transistor manufactured by CEL.

  • Maximum Power: 2W
  • Gain: 8.3dB
  • Noise Figure: 1.5dB to 2dB @ 500MHz to 1GHz
  • Collector Current (Ic): 250mA
  • Collector Emitter Breakdown Voltage: 15V
  • DC Current Gain (hFE): 60 @ 50mA and 10V
  • Package: SOT-89
  • Operating Temperature Range: 150°C (TJ)
