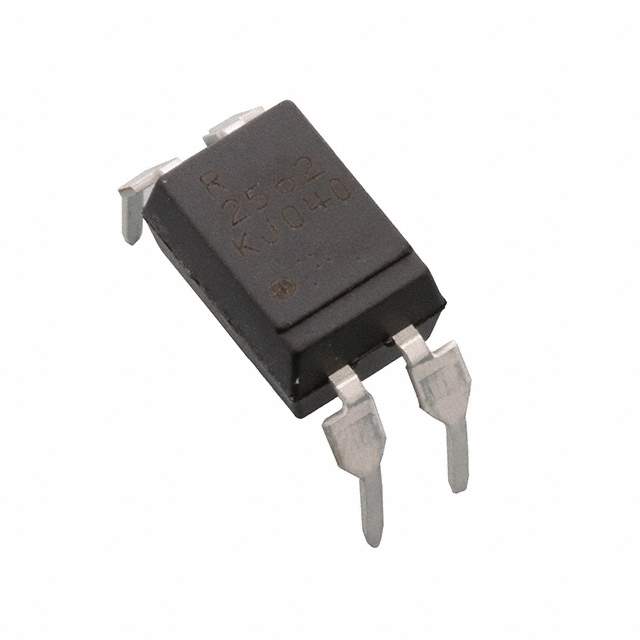

PS2561AL1-1-V-W-A Real Image
Same model may have multiple batches, images only for reference.

PS2561AL1-1-V-W-A

Part No PS2561AL1-1-V-W-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer CEL
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 130% @ 5mA
Current Transfer Ratio (Max) 260% @ 5mA
Rise / Fall Time (Typ) 3µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 30mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 30 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Through Hole
Case / Package 4-DIP (0.400", 10.16mm)
Supplier Device Package 4-DIP
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 100
Win Source Part Number 1331854-PS2561AL1-1-V-W-A
Ultra Librarian 3D Model Ultra Librarian PS2561AL1-1-V-W-A CAD Model

Description

The CEL PS2561AL1-1-V-W-A is an optoisolator transistor that is designed for use in various electronic devices.

  • Maximum Forward Current: 30mA
  • Voltage Forward: 1.2V
  • Rise/Fall Time: 3-5 microseconds
  • Maximum Voltage Output: 70V
