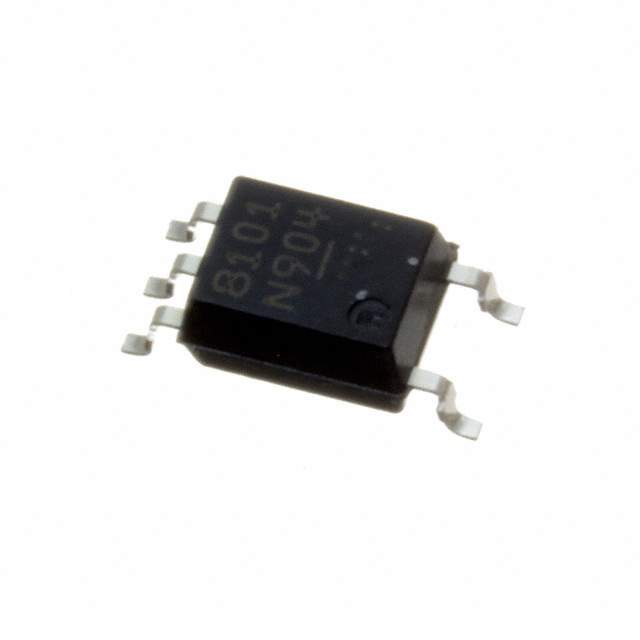

The PS8101-K-AX is a Photocoupler manufactured by CEL (California Eastern Laboratories). It is a device that transfers electrical signals between two isolated circuits by using light. This provides electrical isolation while allowing data to be transmitted.

Applications:

• Industrial Control Systems
• Power Supplies
• Motor Control
• Communication Equipment
• Measuring Instruments

Features:

• High Isolation Voltage: Provides high electrical isolation between input and output circuits.
• Current Transfer Ratio (CTR): Offers a specific current transfer ratio, allowing for efficient signal transmission.
• Low Input Current: Requires a low input current for operation.
• High-Speed Switching: Enables high-speed switching for fast data transfer.
• Compact Package: Comes in a compact package for easy integration into various designs.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental safety.

Benefits:

• Electrical Isolation: Provides electrical isolation, protecting sensitive circuits from voltage spikes and noise.
• Signal Transfer: Enables efficient signal transfer between isolated circuits.
• Reduced Power Consumption: Low input current reduces power consumption.
• Fast Data Transfer: High-speed switching allows for fast data transfer.
• Easy Integration: Compact package simplifies integration into various designs.

Additional Details:

The PS8101-K-AX photocoupler is commonly used in applications where electrical isolation is critical. It provides a reliable means of transferring signals between circuits with different voltage levels or ground potentials. The high isolation voltage ensures that sensitive circuits are protected from potentially damaging voltage spikes or transients. The current transfer ratio (CTR) is a key specification, as it determines the efficiency of signal transfer. The low input current requirement helps to reduce power consumption, making it suitable for battery-powered applications. The high-speed switching capability allows for fast data transfer, making it suitable for high-speed communication systems. The compact package simplifies integration into various designs, while the RoHS compliance ensures environmental safety. The exact isolation voltage, CTR, and switching speed would require referencing the official datasheet for this component.
