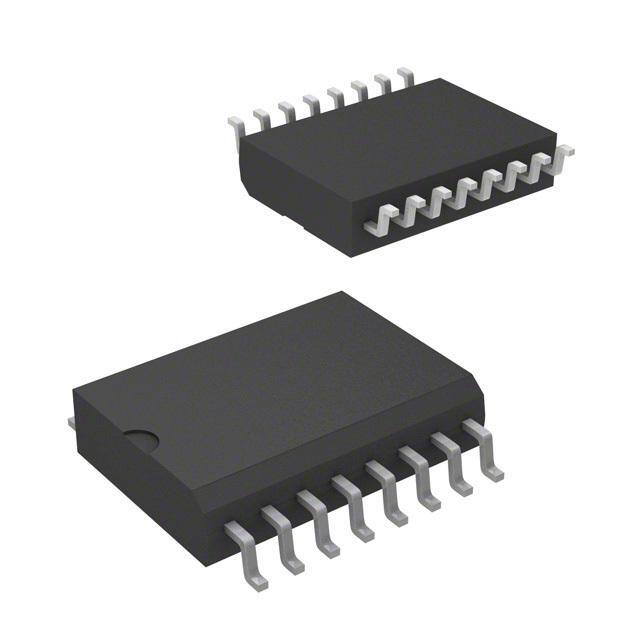

Same model may have multiple batches, images only for reference.
PS9402-E3-AX CEL
Same model may have multiple batches, images only for reference.

PS9402-E3-AX

Part No PS9402-E3-AX
Manufacturer CEL
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 16SSOP / Optocoupler Drive 1-CH 30V 1500V 16-Pin SSOP T/R
Datasheet
PS9402-E3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel package
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 25kV/μs
Propagation Delay tpLH / tpHL (Maximum) 200ns, 200ns
Pulse Width Distortion (Maximum) 100ns
Rise / Fall Time (Typ) 50ns, 50ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.56V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 15 V ~ 30 V
Operating Temperature Range -40°C ~ 110°C
Mounting SMD
Package 16-SOIC (0.295", 7.50mm Width)
Manufacturer Package 16-SSOP
Approvals CSA, UL
Win Source Part Number 792576-PS9402-E3-AX
Popularity Medium
Supply and Demand Status Limited
Family Name PS9402
Introduction Date December 19, 2011
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS9402-E3-AX CAD Model

Description

The CEL PS9402-E3-AX is an optical coupling device that comes in a 16-SOIC (0.295", 7.50mm Width) package.

  • Current-Output High: 2A
  • Current-Output Low: 2A
  • Operating Supply Voltage: 15V to 30V
  • Voltage-Forward (Vf): 1.56V
  • Rise/Fall Time: 50ns/50ns
  • Channels: 1
  • Voltage Isolation: 5000Vrms
  • Common Mode Transient Immunity: 25kV/μs
  • Propagation Delay tpLH/tpHL: 200ns/200ns
  • Approvals: RoHS, CSA, UL
