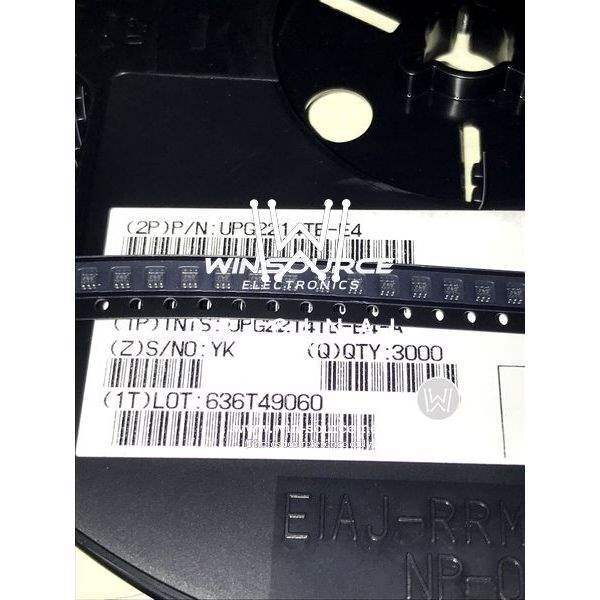

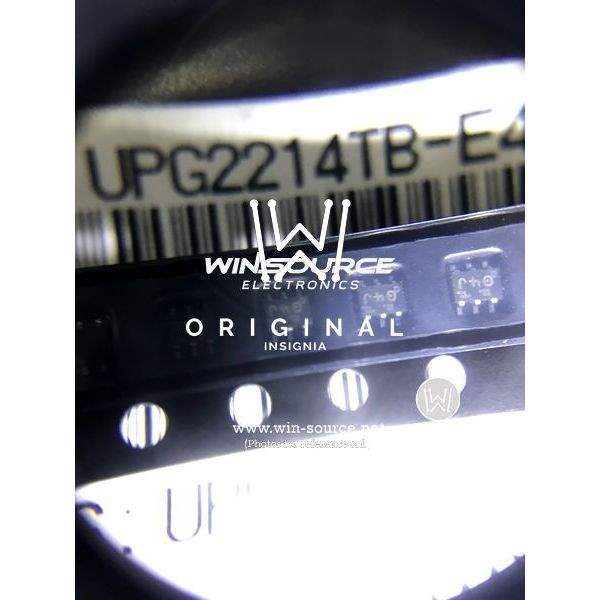

UPG2214TB-E4-A CEL UPG2214TB-E4-A Real Image UPG2214TB-E4-A real image9705 UPG2214TB-E4-A real image 2 UPG2214TB-E4-A real image 3 UPG2214TB-E4-A label picture UPG2214TB-E4-A label picture 2 UPG2214TB-E4-A label picture 3 UPG2214TB-E4-A real image 4
Same model may have multiple batches, images only for reference.
UPG2214TB-E4-A CEL UPG2214TB-E4-A Real Image UPG2214TB-E4-A real image9705 UPG2214TB-E4-A real image 2 UPG2214TB-E4-A real image 3 UPG2214TB-E4-A label picture UPG2214TB-E4-A label picture 2 UPG2214TB-E4-A label picture 3 UPG2214TB-E4-A real image 4
UPG2214TB-E4-A CEL UPG2214TB-E4-A Real Image UPG2214TB-E4-A real image9705 UPG2214TB-E4-A real image 2 UPG2214TB-E4-A real image 3 UPG2214TB-E4-A label picture UPG2214TB-E4-A label picture 2 UPG2214TB-E4-A label picture 3 UPG2214TB-E4-A real image 4
Same model may have multiple batches, images only for reference.

UPG2214TB-E4-A

Part No UPG2214TB-E4-A
Manufacturer CEL
Catalog RF Switches
Description IC SWITCH SPDT 6-SMINI
Datasheet
UPG2214TB-E4-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 50MHz
Frequency - Upper 3GHz
Isolation @ Frequency 24dB @ 3GHz (typ)
Insertion Loss @ Frequency 0.35dB @ 3GHz
IIP3 58dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 27dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -45°C to 85°C
RF Type 802.11a/b/g/WiFi, 802.16/WiMax, WLAN
Case / Package 6-SuperMiniMold
Win Source Part Number 036126-UPG2214TB-E4-A
Family Name UPG2214
Introduction Date February 04, 2004
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian UPG2214TB-E4-A CAD Model

Description

The CEL UPG2214TB-E4-A is a reflective SPDT circuit with an impedance of 50 Ohm and a frequency range of 50MHz to 3GHz.

  • Isolation: It has an isolation of 24dB @ 3GHz (typ)
  • Insertion Loss: and insertion loss of 0.35dB @ 3GHz.
  • IIP3: The IIP3 value is 58dBm (typ)
  • P1dB: and P1dB is 27dBm (typ) IP1dB.
  • Applications: This component is suitable for RF/IF and RFID applications such as 802.11a/b/g/WiFi, 802.16/WiMax, and WLAN.
  • Temperature Range: The temperature range for operating this component is -45°C to 85°C and it comes in a 6-SuperMiniMold case/package.
  • Status: This component is obsolete and alternative parts include uPG2214TB-E4, UPG2214TB, and UPG2214TB-A.
