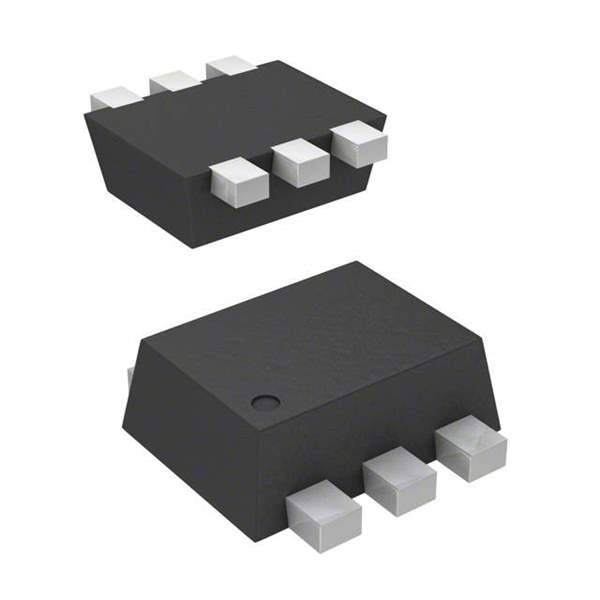

CMLDM8120G TR Real Image
Same model may have multiple batches, images only for reference.

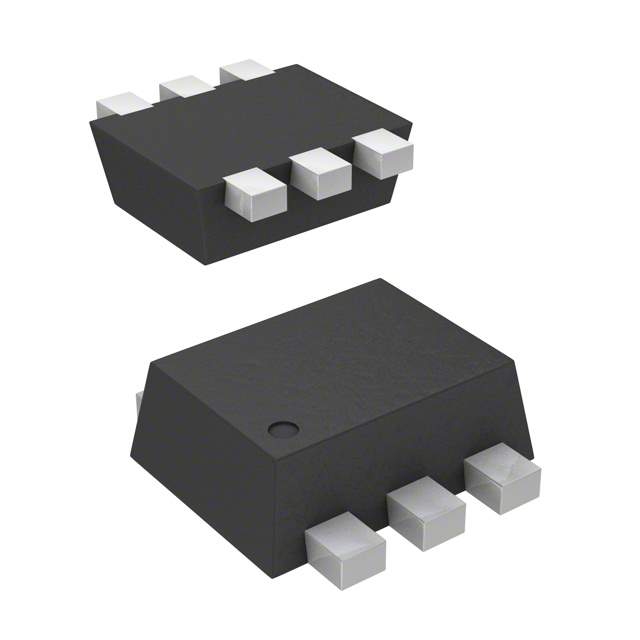

CMLDM8120G TR

Part No CMLDM8120G TR
Manufacturer Central Semiconductor Corp
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 0.86A SOT563
Datasheet
CMLDM8120G TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 3.56nC @ 4.5V
Max Input Capacitance 200pF @ 16V
Maximum Gate-Source Voltage 8V
Power Dissipation (Max) 350mW (Ta)
Maximum Rds On at Id,Vgs 150 mOhm @ 950mA, 4.5V
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Dimension SOT-563, SOT-666
Win Source Part Number 1029614-CMLDM8120G TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMLDM8120G TR CAD Model

Description

The CMLDM8120G TR is a MOSFET type electronic component manufactured by Central Semiconductor Corp.

  • Polarity: P-Channel
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current @ 25°C: 860mA (Ta)
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Technology: MOSFET
  • Maximum Rds on @ Id, Vgs: 150 mOhm @ 950mA, 4.5V
  • Mounting Type: SMD (SMT)
  • Drive Voltage: 1.8V, 4.5V
  • Power Dissipation (Max): 350mW (Ta)
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Case/Package: SOT-563 and SOT-666
  • Popularity: Medium
  • Supply and Demand Status: Balanced
