The CMLT3906EG is a dual NPN bipolar junction transistor (BJT) array manufactured by Central Semiconductor Corp. This transistor array offers two matched transistors in a single package, providing space savings and improved thermal tracking compared to using two discrete transistors. It is designed for a wide range of small signal amplification and switching applications.

Applications:

• Low-Noise Amplifiers: Used in low-noise amplifier circuits to amplify weak signals with minimal added noise.
• Differential Amplifiers: Employed in differential amplifier circuits for signal amplification and comparison.
• Switching Circuits: Used in switching circuits for controlling the flow of current in various electronic systems.
• Current Mirrors: Integrated into current mirror circuits to provide a stable and accurate current source.
• Analog Signal Processing: Employed in analog signal processing circuits for filtering, amplification, and signal conditioning.

Features:

• Dual NPN Transistors: Contains two NPN transistors in a single package.
• Matched Transistor Characteristics: Offers closely matched transistor characteristics for improved performance in differential amplifier and current mirror applications.
• Low Saturation Voltage: Minimizes power loss and improves efficiency in switching applications.
• High Current Gain (hFE): Provides high current gain for efficient signal amplification.
• Small Surface Mount Package: Allows for automated assembly and reduces board space requirements.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits:

• Space Savings: Reduces board space requirements by integrating two transistors into a single package.
• Improved Thermal Tracking: Provides better thermal tracking between the two transistors, improving circuit stability.
• Simplified Design: Simplifies circuit design by providing matched transistor characteristics.
• Enhanced Performance: Improves the performance of differential amplifiers and current mirrors due to matched transistor characteristics.
• Cost-Effective Solution: Offers a cost-effective solution for small signal amplification and switching applications.

Additional Details:

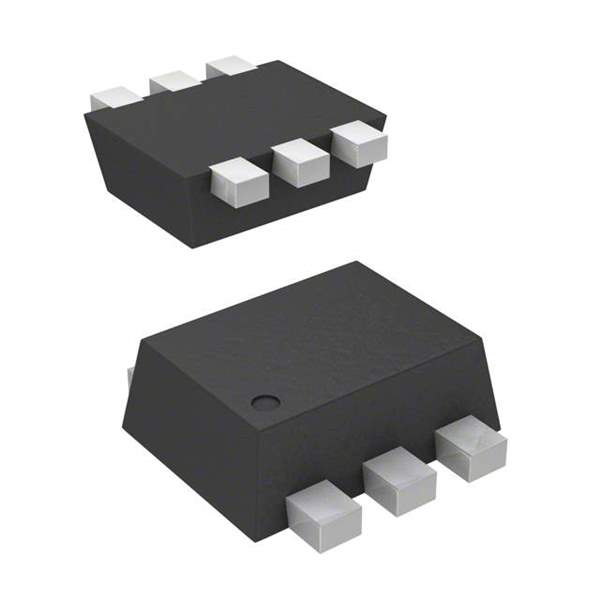

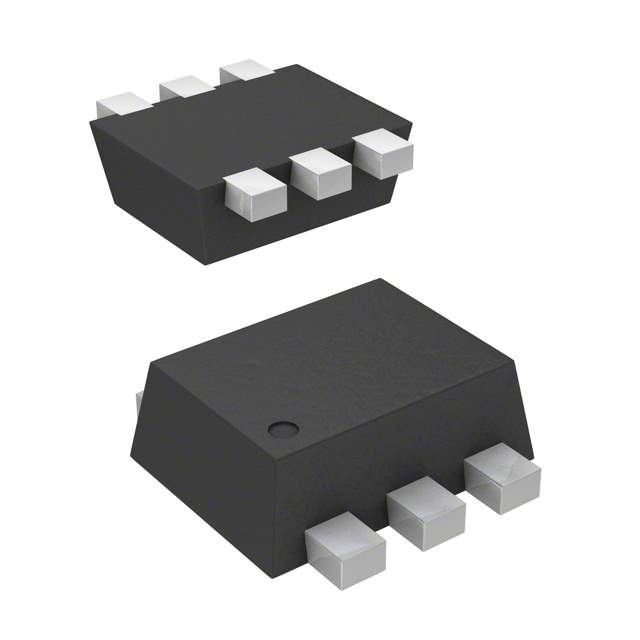

The CMLT3906EG has a collector-emitter voltage (VCEO) of 40V, a collector current (IC) of 200mA, and a power dissipation of 350mW. The current gain (hFE) is typically in the range of 100 to 300. It is typically packaged in a SOT-363 package. Refer to the Central Semiconductor Corp datasheet for detailed specifications and application guidelines.
