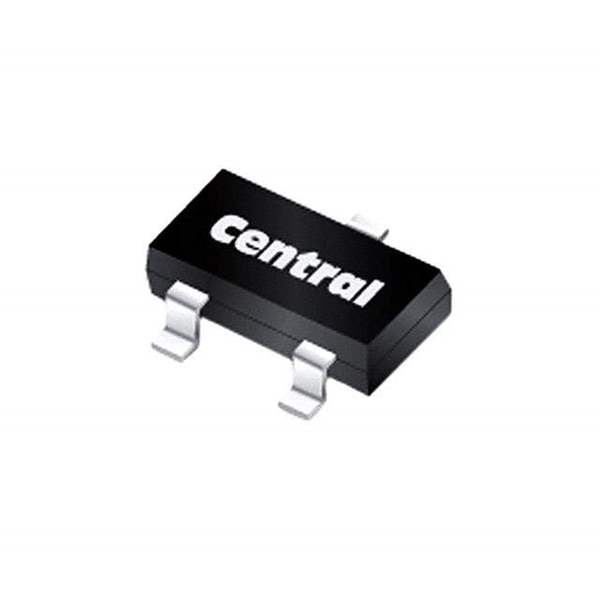

CMPD6001C TR Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMPD6001C TR

Part No CMPD6001C TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 75V 250MA SOT23
Datasheet
CMPD6001C TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) (per Diode) 250mA
Voltage - Forward (Vf) (Max) @ If 1.1V @ 100mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 3μs
Current - Reverse Leakage @ Vr 500pA @ 75V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 1029675-CMPD6001C TR
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Audio, Imaging, Video & Vision, Portable Devices, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian CMPD6001C TR CAD Model

Description

The CMPD6001C TR is a surface-mount standard diode manufactured by Central Semiconductor Corp.

  • Reverse Voltage (Vr): 75V
  • Forward Voltage (Vf): 1.1V @ 100mA
  • Reverse Recovery Time (trr): 3μs
  • Current Leakage: 500pA @ 75V
  • Average Rectified Current (Io): 250mA per diode
  • Package: SOT-23
  • Recovery Speed: Fast, 200mA (Io)
