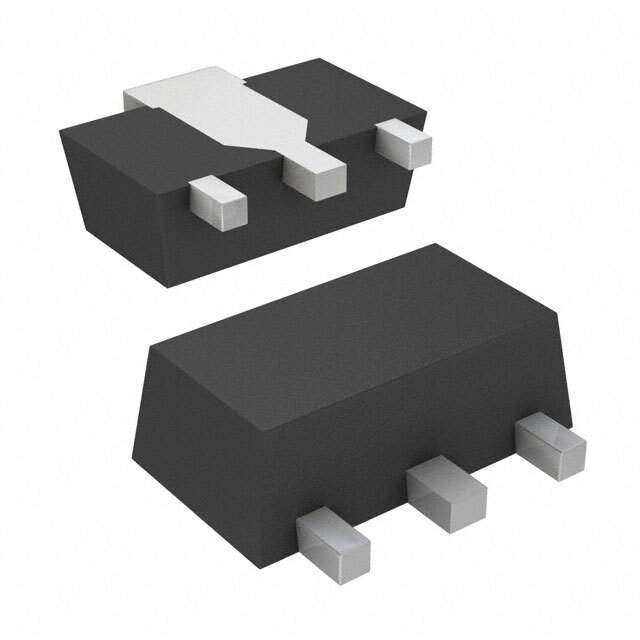

The CXT4033 is a silicon NPN transistor manufactured by Central Semiconductor Corp. It is designed for use in various general-purpose amplifier and switching applications.

Applications

• General Purpose Amplification
• Switching Circuits
• Driver Stages
• Oscillators
• Linear Amplifiers

Features

• NPN Silicon Transistor
• High Collector-Emitter Voltage (VCEO)
• High Current Gain (hFE)
• Low Saturation Voltage
• RoHS Compliant

Benefits

• Versatile Application: Suitable for a wide range of amplifier and switching circuits.
• High Performance: Provides efficient amplification and switching capabilities.
• Reliable Operation: Designed for stable and consistent performance.
• Environmentally Friendly: Complies with RoHS standards, ensuring reduced environmental impact.
• Cost-Effective: Offers a balance of performance and affordability.

Additional Details

The CXT4033 is typically available in a through-hole package (e.g., TO-92). Key electrical characteristics include a collector-emitter voltage (VCEO) of around 40V, a collector current (IC) of up to 200mA, and a DC current gain (hFE) that can range from 40 to 400 depending on the specific operating conditions. The exact hFE group can vary so it is important to check the datasheet for the specific grade. It is important to consult the manufacturer's datasheet for precise electrical characteristics, thermal properties, and recommended operating conditions to ensure optimal and safe operation within the intended application. This datasheet provides crucial information such as maximum ratings, thermal resistance, and detailed performance curves. The transistor's robust design contributes to its suitability for both prototyping and production environments where reliable performance is crucial.
