Same model may have multiple batches, images only for reference.

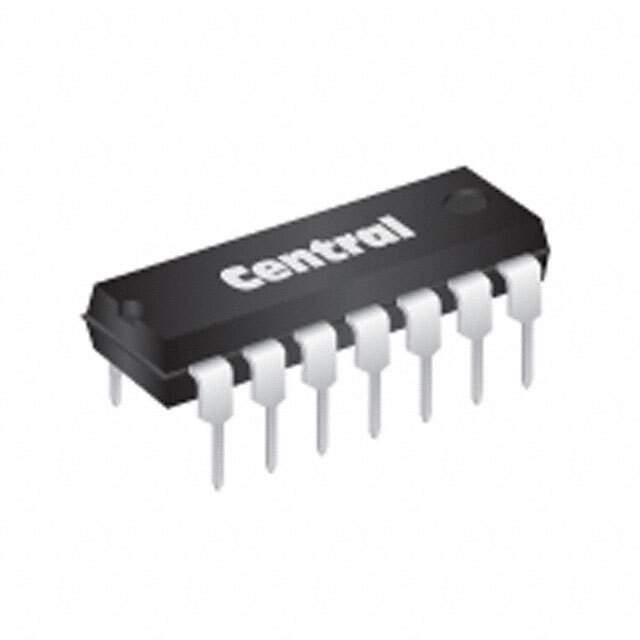

MPQ3799 Real Image
Same model may have multiple batches, images only for reference.

MPQ3799

Part No MPQ3799
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Arrays
Description TRANS 4PNP 60V 0.05A
Datasheet
MPQ3799 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Tube/Rail
Status Active
Transistor Polarity 4 PNP (Quad)
Maximum Current Collector 50mA
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 250mV @ 100μA, 1mA
Collector Cut-off Current(Max) 10nA (ICBO)
Typical Gain (hFE) (Min) 250 @ 10mA, 5V
Maximum Power Dissipation 500mW
Frequency - Transition 60MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-116
Win Source Part Number 044993-MPQ3799
Ultra Librarian 3D Model Ultra Librarian MPQ3799 CAD Model

Description

The Central Semiconductor Corp MPQ3799 is a through-hole mounted quad PNP transistor in a TO-116 package.

  • Mounting Type: Through Hole
  • Package: TO-116
  • Maximum Current Collector: 50mA
  • Maximum Collector-Emitter Breakdown Voltage: 60V
  • Frequency Transition: 60MHz
  • Typical Gain (hFE): 250 @ 10mA and 5V
  • Maximum Power Dissipation: 500mW
  • Status: Active
  • Popularity: Medium
