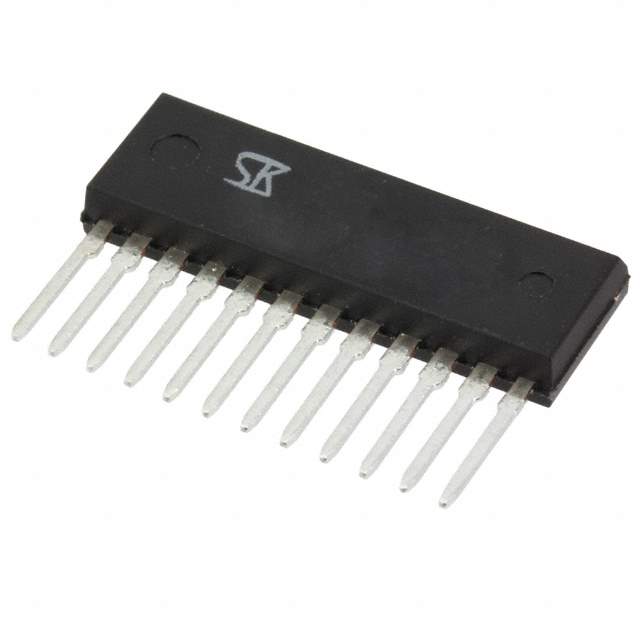

SMA4032 Real Image
Same model may have multiple batches, images only for reference.

SMA4032

Part No SMA4032
Manufacturer Sanken
Catalog Transistors (BJT) - Arrays
Description TRANS 4NPN DARL 100V 3A 12SIP
Datasheet
SMA4032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity 4 NPN Darlington (Quad)
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 100V
Max Vce (sat) 1.5V @ 3mA, 1.5A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 2000 @ 1.5A, 4V
Maximum Power Dissipation 4W
Frequency - Transition 40MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 046979-SMA4032
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA4032 CAD Model

Description

The Sanken SMA4032 is a through-hole Darlington transistor with a frequency transition of 40MHz.

  • Frequency Transition: 40MHz
  • Maximum Collector-Emitter Breakdown Voltage: 100V
  • Maximum Current Collector: 3A
  • Typical Gain (hFE): 2000 @ 1.5A @ 4V
  • Case/Package: 12-SIP
  • Maximum Power Dissipation: 4W
  • Collector Cut-off Current: 10μA (ICBO)
