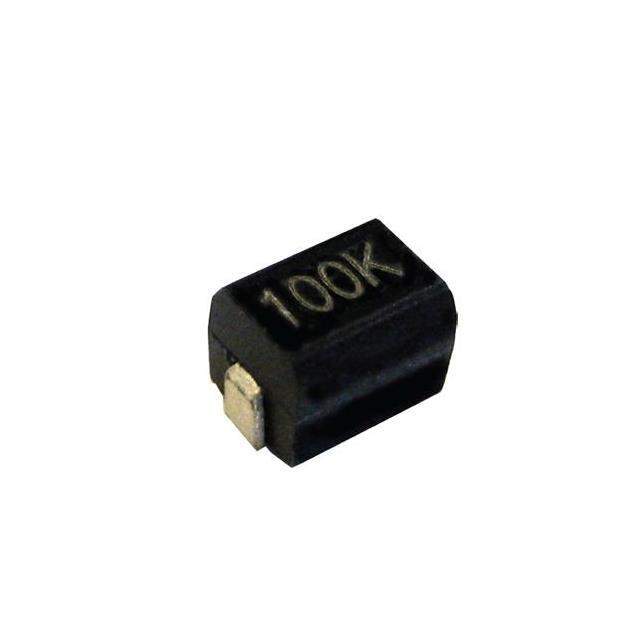

Same model may have multiple batches, images only for reference.

CTMC1812SF-101K

Get a Quote

Part No	CTMC1812SF-101K
Manufacturer	Central Technologies
Catalog	Fixed Inductors
Description	SMD FERRITE CORE WW INDUCTOR / 100 µH Unshielded Drum Core, Wirewound Inductor 110 mA 8Ohm Max 1812 (4532 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Central Technologies
Series	CTMC1812SF
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±10%
Current Rating (Amps)	110 mA
Shielding	Unshielded
DC Resistance (DCR)	8Ohm Max
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	8MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	796 kHz
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
MSL Level	Vendor Undefined
REACH Status	REACH info available upon request
Other Names	4161-CTMC1812SF-101K
Standard Package	500
Win Source Part Number	1177266-CTMC1812SF-101K
Ultra Librarian 3D Model	Ultra Librarian CTMC1812SF-101K CAD Model

Alternative Products

Description

The Central Technologies CTMC1812SF-101K is a drum core, wirewound fixed inductor with an inductance of 100 µH and a tolerance of ±10%.

Inductance: 100 µH
Tolerance: ±10%
DC Resistance (DCR): 8Ohm Max
Current Rating (Amps): 110 mA
Supply and Demand Status: unknown
Manufacturer: Central Technologies
