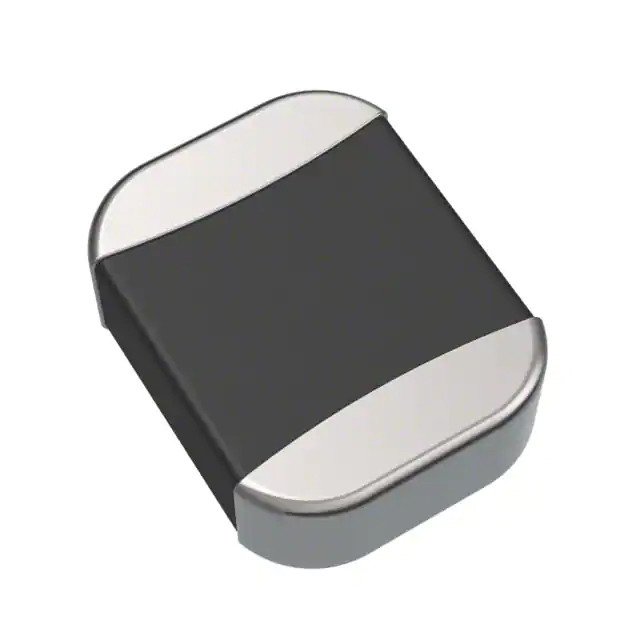

BDCD00252012R47MS1 Chilisin
Same model may have multiple batches, images only for reference.

BDCD00252012R47MS1

Part No BDCD00252012R47MS1
Manufacturer Chilisin
Catalog Fixed Inductors
Description FIXED IND 470NH 4.4A 39 MOHM SMD
Datasheet
BDCD00252012R47MS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BDCD
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.4 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 39mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370392-BDCD00252012R47MS1
Ultra Librarian 3D Model Ultra Librarian BDCD00252012R47MS1 CAD Model

Description

The BDCD00252012R47MS1 is a fixed inductor with a molded construction from Chilisin Electronics.

  • Series: BDCD
  • Package Size: 1008 (2520 Metric)
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height (Max): 0.047" (1.20mm)
  • Inductance: 470 nH
  • Current Rating: 4.4A (Maximum)
  • DC Resistance (DCR): 39mOhm
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
