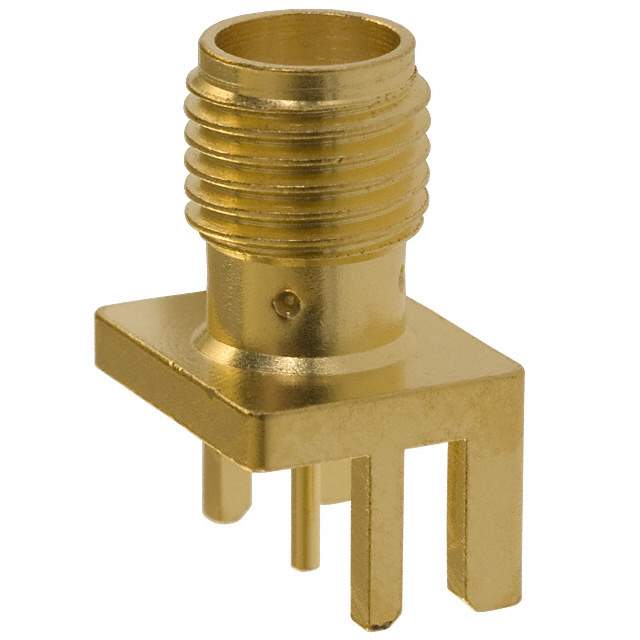

142-0701-801 Real Image
Same model may have multiple batches, images only for reference.

142-0701-801

Part No 142-0701-801
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Datasheet
142-0701-801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Fastening Type Threaded
Maximum Input Frequency 18GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038788-142-0701-801
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 142-0701-801 CAD Model

Description

142-0701-801: Versatile RF Coaxial Connector

The 142-0701-801 RF coaxial connector offers exceptional signal integrity and reliability, perfect for high-frequency applications. Its robust design and compatibility with various RF systems make it a reliable choice for professional projects.

  • Applications: RF signal transmission, communication systems, wireless networks, test and measurement equipment
  • Features & Benefits:
    • High-frequency performance ensures optimal signal clarity
    • Durable construction for long-lasting use
    • Easy installation and secure connection
  • Additional Details: The connector's gold-plated contacts minimize signal loss, and its compact design supports space-constrained applications.
