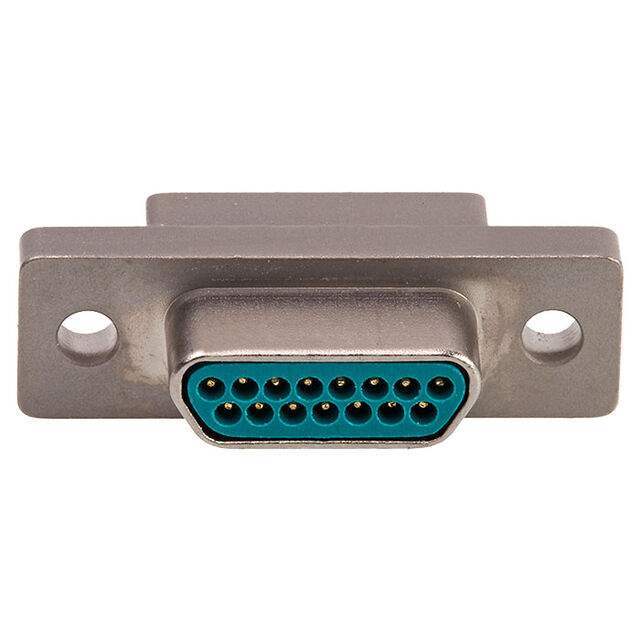

M83513/03-B03C Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

M83513/03-B03C

Part No M83513/03-B03C
Manufacturer Cinch Connectivity Solutions
Catalog D - Sub Cables
Description CABLE ASSY D-MIC-D 15P 457.2MM
Datasheet
M83513/03-B03C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309989-M83513/03-B03C
Category Cable Assemblies> D-Sub Cables
Manufacturer Cinch Connectivity Solutions
Packaging Bag
Part Status Active
1st Connector Plug, Male Pins
2nd Connector Individual Wire Leads
Type D-Type, Micro-D
Number of Positions 15
Length 1.50' (457.20mm)
Color Multiple, Individual
Ultra Librarian 3D Model Ultra Librarian M83513/03-B03C CAD Model

Description

The heart of the Dura-Con system is the Dura-Con twist pin contact. The Cinch Dura-Con twist pin contact is made from a precision miniature spring cable with a welded tip. The expanded cable provides seven spring members peripherally around the pin so that contact is maintained with the mating socket wall no matter what radial forces are applied. This spring may be flexed many times without any evidence of metal fatigue. Reliable mating is further ensured by protecting the pin contact in a tightly toleranced recessed cavity.
