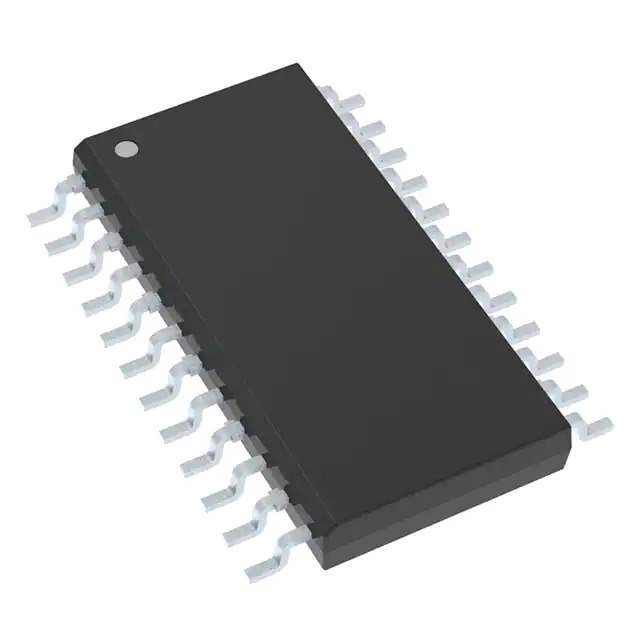

CS5505-ASZ Real Image
Same model may have multiple batches, images only for reference.

CS5505-ASZ

Part No CS5505-ASZ
Manufacturer Cirrus Logic Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16BIT SIGMA-DELTA 24SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr Cirrus Logic Inc.
Package Tube
Product Status Obsolete
Number of Bits 16
Sampling Rate (Per Second) 100
Number of Inputs 4
Input Type Pseudo-Differential
Data Interface SPI
Configuration MUX-ADC
Number of A/D Converters 1
Architecture Sigma-Delta
Reference Type External, Internal
Voltage - Supply, Analog ±5V
Voltage - Supply, Digital 3.15V ~ 5.5V
Features Selectable Address
Temperature Range - Operating -40°C ~ 85°C
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC
Mounting Type Surface Mount
Base Product Number CS5505
Standard Package 31 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 580702-CS5505-ASZ
Ultra Librarian 3D Model Ultra Librarian CS5505-ASZ CAD Model

Description

The 580702-CS5505-ASZ is an analog-to-digital converter (ADC) designed for data acquisition applications. Manufactured by Cirrus Logic Inc., this product is part of their obsolete product lineup.

  • Architecture: sigma-delta
  • Resolution: 16-bit
  • Sampling Rate: 100 per second
  • Features: selectable address
  • Analog Voltage Supply: ±5V
  • Digital Voltage Supply: 3.15V to 5.5V
  • Suitable For: data acquisition systems, industrial automation
