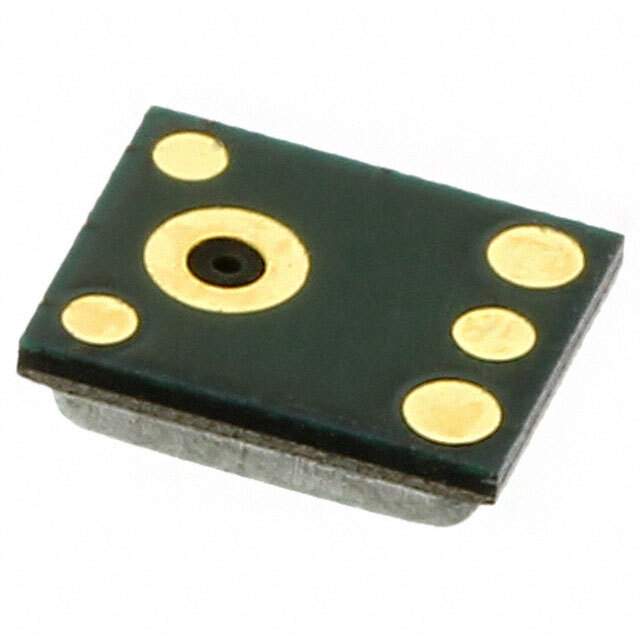

WM7132PIMSE/RV Real Image
Same model may have multiple batches, images only for reference.

WM7132PIMSE/RV

Part No WM7132PIMSE/RV
Manufacturer Cirrus Logic Inc.
Catalog Microphones
Description IC MIC CMOS/MEMS BOTTM PORT 6LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cirrus Logic Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 62Hz ~ 12.5kHz
Sensitivity -38dB ±1dB at 94dB SPL
S/N Ratio 65dB
Impedance 55 Ohms
Voltage - Rated 2.1V
Voltage Range 1.5V ~ 3.7V
Current - Supply 240μA
Port Location Bottom
Termination Solder Pads
Dimension 0.148" L x 0.116" W (3.76mm x 2.95mm)
Height (Maximum) 0.047" (1.20mm)
Shape Rectangular
Manufacturer Pack Quantity 5,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806859-WM7132PIMSE/RV
Ultra Librarian 3D Model Ultra Librarian WM7132PIMSE/RV CAD Model

Description

The Cirrus Logic Inc. WM7132PIMSE/RV is a MEMS (Silicon) type microphone.

  • Shape: Rectangular
  • Port Location: Bottom
  • Direction: Omnidirectional
  • Sensitivity: -38dB ±1dB @ 94dB SPL
  • Frequency Range: 62Hz ~ 12.5kHz
  • Impedance: 55 Ohms
  • Status: Obsolete
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 5,000
