Same model may have multiple batches, images only for reference.

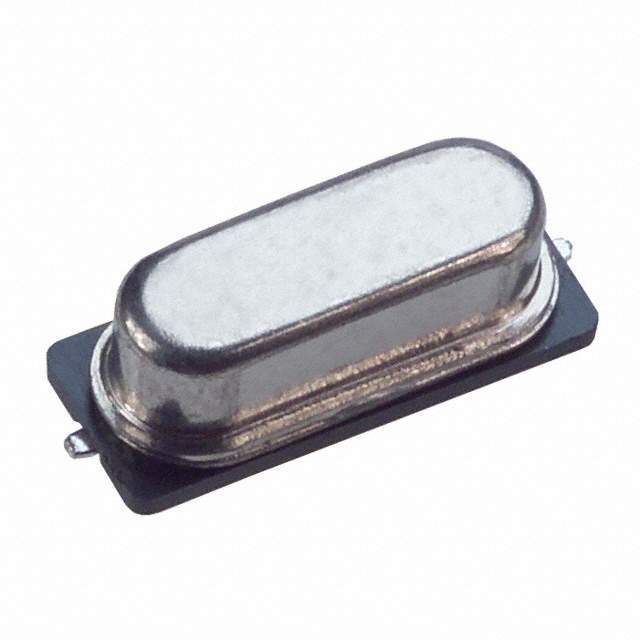

HCM4914318180BBKT Real Image
Same model may have multiple batches, images only for reference.

HCM4914318180BBKT

Part No HCM4914318180BBKT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 14.31818MHZ 20PF SMD / 14.31818 MHz ±50ppm Crystal 20pF 50 Ohms HC-49/US
Datasheet
HCM4914318180BBKT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series HCM49
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 1,000
Win Source Part Number 1034758-HCM4914318180BBKT
Ultra Librarian 3D Model Ultra Librarian HCM4914318180BBKT CAD Model

Description

The Citizen Finedevice Co Ltd HCM4914318180BBKT is a 14.31818 MHz crystal with a frequency tolerance of ±50ppm and a frequency stability of ±50ppm.

  • Frequency: 14.31818 MHz
  • Frequency Tolerance: ±50ppm
  • Frequency Stability: ±50ppm
  • ESR: 50 Ohms
  • Load Capacitance: 20pF
  • Package: HC-49/US
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -10°C to 60°C
  • Height: 0.169" (4.30mm)
