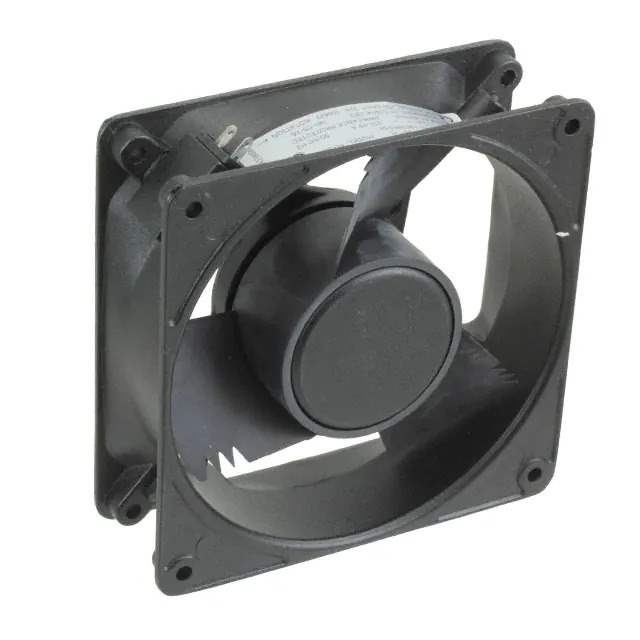

19028423A Real Image
Same model may have multiple batches, images only for reference.

19028423A

Part No 19028423A
Manufacturer Comair Rotron
Catalog AC Fans
Description FAN AXIAL 119X39MM 230VAC MX3B3 / Fan Tubeaxial 230VAC Square - 119mm L x 119mm H Ball 105.0 CFM (2.94m3/min) 2 Terminals
Datasheet
19028423A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - AC Fans
Mfr Comair Rotron
Series Muffin XL AC
Package Box
Product Status Active
Voltage - Rated 230VAC
Size / Dimension Square - 119mm L x 119mm H
Width 39.00mm
Air Flow 105.0 CFM (2.94m³/min)
Static Pressure 0.223 in H2O (55.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 47.6dB(A)
Power (Watts) 16.00W
RPM 3100 RPM
Termination 2 Terminals
Approval Agency CE, cUL, UL
Weight 1.3 lbs (589.7 g)
Current Rating (Amps) 0.090A
Material - Frame Magnesium Alloy
Material - Blade Magnesium Alloy
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 905634-19028423A
Ultra Librarian 3D Model Ultra Librarian 19028423A CAD Model

Description

The Muffin XL AC is a square AC fan used for thermal management in electronic devices. It has a size of 119mm x 119mm and a width of 39.00mm.

  • Type: Square AC Fan
  • Size: 119mm x 119mm
  • Width: 39.00mm
  • Rated Voltage: 230VAC
  • Power Consumption: 16.00W
  • Air Flow: 105.0 CFM
  • Static Pressure: 0.223 in H2O
  • Bearing Type: Ball
  • Noise Level: 47.6dB(A)
  • Frame and Blades Material: Magnesium Alloy
  • Product Status: Active
  • Manufacturer: Comair Rotron
