Same model may have multiple batches, images only for reference.

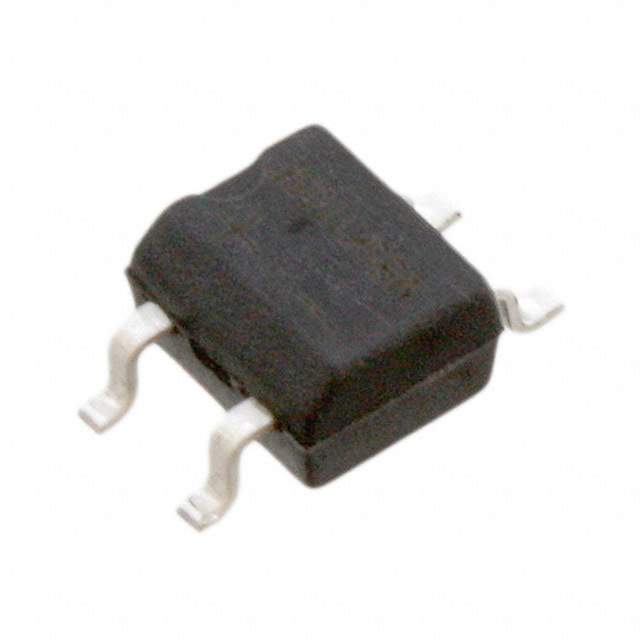

CDBHM1100L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBHM1100L-HF

Part No CDBHM1100L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 100V 1A MBS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 9 Weeks
Features Bridge Rectifier Single Phase Schottky 100 V Surface Mount MBS
Manufacturer Comchip Technology
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package TO-269AA, 4-BESOP
Case / Package MBS
Family Name CDBHM1100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1429-1, 641-1429-2, CDBHM1100LHF, 641-1429-6
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866177-CDBHM1100L-HF
Ultra Librarian 3D Model Ultra Librarian CDBHM1100L-HF CAD Model

Description

The Comchip Technology CDBHM1100L-HF is a bridge rectifier single phase Schottky 100 V surface mount MBS. It is designed to operate in a wide temperature range of -55°C to 150°C (TJ) and comes in a TO-269AA, 4-BESOP package. CDBHM1100L-HF is from Comchip Technology.

  • Type: Bridge Rectifier Single Phase Schottky
  • Voltage: 100 V
  • Mounting Type: Surface Mount
  • Package: MBS
  • Operating Temperature: -55°C to 150°C (TJ)
  • Family: CDBHM1100
  • Category: Discrete Semiconductor Products
  • MSL: 1 (Unlimited)
  • Lead Time: 9 weeks
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
  • Packaging: Reel - TR
  • Quantity per Package: 2500
