Products specifications

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 500nA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 104671-CDBU42
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CDBU42 CAD Model

Description

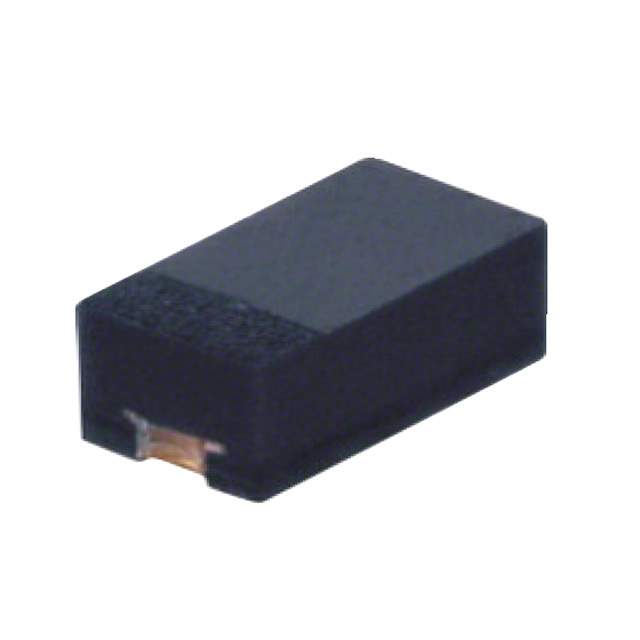

Overview of CDBU42

The CDBU42 diode is an advanced component tailored for high-current rectification in compact designs. It offers superior performance with its low forward voltage drop, minimizing energy loss.

Features and Benefits

  • High surge current rating for robust applications.
  • Effective thermal management ensures stable operation.
  • Low forward voltage drop enhances power efficiency.
  • Compact design ideal for space-constrained applications.
  • Environmentally compliant with RoHS standards.

Applications

  • Lighting systems
  • Battery charging circuits
  • Consumer electronic devices
  • Uninterruptible power supplies (UPS)
  • Electric vehicle systems

Additional Details: The CDBU42 is perfect for applications where space is limited but high efficiency and reliability are paramount. Its integration into sophisticated electronic systems underscores its versatility and adaptability.
