Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Current - Output / Channel 5 ~ 100 mA
Outputs and Type 8, Non-Isolated
Voltage - Output 20V
Features Graphic User Interface, 5x8 LED Matrix
Voltage - Input 7V ~ 32V
Supplied Contents Board(s)
Utilized IC / Part STP08DP05
Other Names 497-6337,-497-6337
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.5100
Win Source Part Number 1283828-STEVAL-ILL002V3
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL002V3 CAD Model

Description

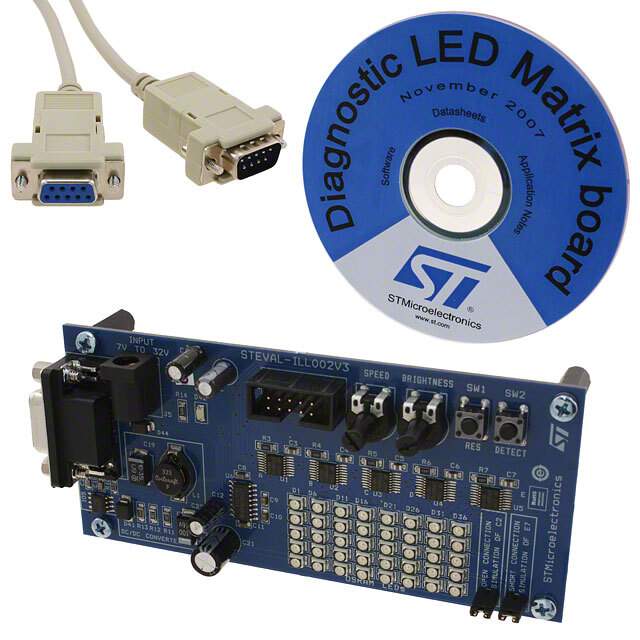

STEVAL-ILL002V3 LED Driver Evaluation Board

The STEVAL-ILL002V3 from STMicroelectronics is a versatile LED driver evaluation board designed to showcase the performance and capabilities of the company's advanced power and lighting control technologies. This evaluation platform is specifically tailored for driving LEDs with high efficiency and precision, making it an excellent tool for developers and engineers working on lighting solutions.

The board features a highly integrated LED driver, capable of providing a constant current output to ensure uniform brightness and maximize the lifespan of the LEDs. The current regulation is achieved through an advanced feedback mechanism, which compensates for variations in input voltage and LED forward voltage, thus maintaining consistent light output.

One of the key components of the STEVAL-ILL002V3 is its dimming control functionality. The board supports both analog and Pulse Width Modulation (PWM) dimming techniques, allowing users to adjust the brightness of the connected LEDs with high resolution. This flexibility makes it suitable for a wide range of applications, from general lighting to more specialized uses such as architectural or mood lighting.

The evaluation board is also equipped with protection features to ensure the longevity and reliability of the LED array. These include overcurrent protection, thermal shutdown, and under-voltage lockout, which safeguard the LEDs and the driver circuitry from electrical anomalies and thermal stress.

Designed for ease of use, the STEVAL-ILL002V3 comes with a user-friendly interface that includes connectors and test points for easy measurement and debugging. It is also accompanied by comprehensive documentation, including schematics, BOM, and application notes, which provide valuable resources for developers to accelerate their design process.

Overall, the STEVAL-ILL002V3 is an excellent demonstration and development tool that encapsulates STMicroelectronics' commitment to providing innovative and reliable solutions for the ever-growing LED lighting market.
