Same model may have multiple batches, images only for reference.

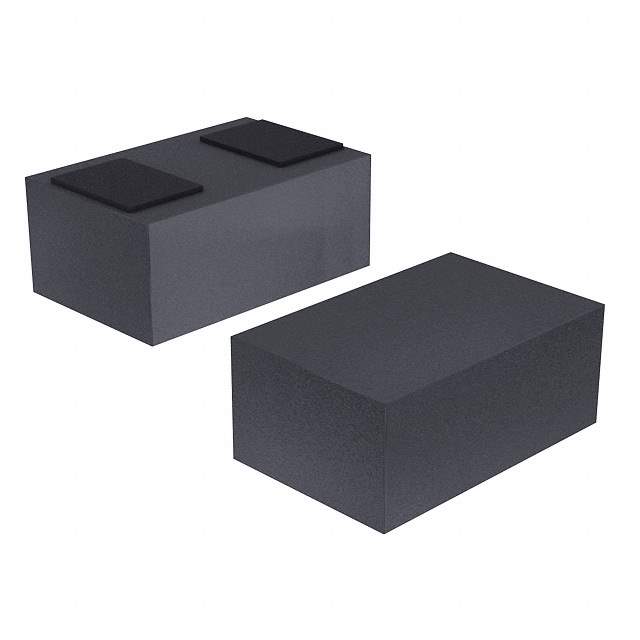

CPDER24V-HF Real Image
Same model may have multiple batches, images only for reference.

CPDER24V-HF

Part No CPDER24V-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 47VC 0503
Datasheet
CPDER24V-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 25V
Max Clamping Voltage 47V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 47W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030035-CPDER24V-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER24V-HF CAD Model

Description

The Comchip Technology 1030035-CPDER24V-HF is a Zener diode designed for general purpose use.

  • Type: Bidirectional device
  • Channels: 1 channel
  • Capacitance: 10pF @ 1MHz
  • Package: 0503/SOD-723F case
  • Stand-off Voltage: 24V
  • Minimum Breakdown Voltage: 25V
  • Maximum Clamping Voltage: 47V
  • Peak Pulse Current: 1A (8/20μs)
  • Power Dissipation: 47W
  • Category: Circuit Protection
  • Popularity: Currently popular with a medium level of demand.
  • Supply and Demand Status: Balanced, with 4k pieces per package available.
