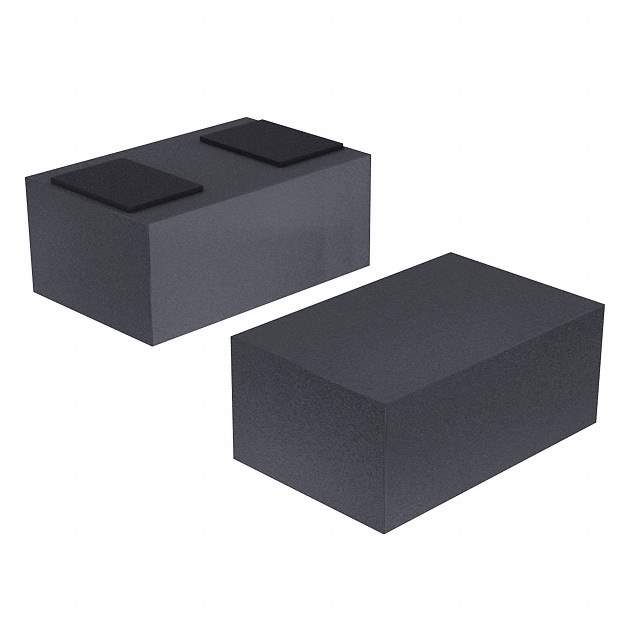

CPDER5V0U Real Image
Same model may have multiple batches, images only for reference.

CPDER5V0U

Part No CPDER5V0U
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0503
Datasheet
CPDER5V0U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 90pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0503/SOD-723F
Win Source Part Number 1030036-CPDER5V0U
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDER5V0U CAD Model

Description

The Comchip Technology 1030036-CPDER5V0U is a zener diode that is ideal for use in general-purpose applications.

  • Package: 0503/SOD-723F
  • Mounting Type: Surface Mount
  • Packaging: Reel - TR
  • Channel Configuration: Unidirectional
  • Capacitance: 90pF @ 1MHz
  • STAND-OFF Voltage (Vwm): 5V
  • Breakdown Voltage (Min): 6V
  • Clamping Voltage (Max): 12.5V
  • Peak Pulse Current (Ippm): 16A (8/20μs)
  • Power Dissipation - Pd: 200W
  • Diode Type: Standard
  • Current - Average Rectified (Io): 100mA
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 100mA
  • Current - Reverse Leakage @ Vr: 50nA @ 75V
  • Operating Temperature - Junction: 125°C (Max)
  • Component Status: Active
  • Category: Circuit Protection
  • Supply and Demand Status: Sufficient
  • Pieces per Package: 4,000
