Same model may have multiple batches, images only for reference.

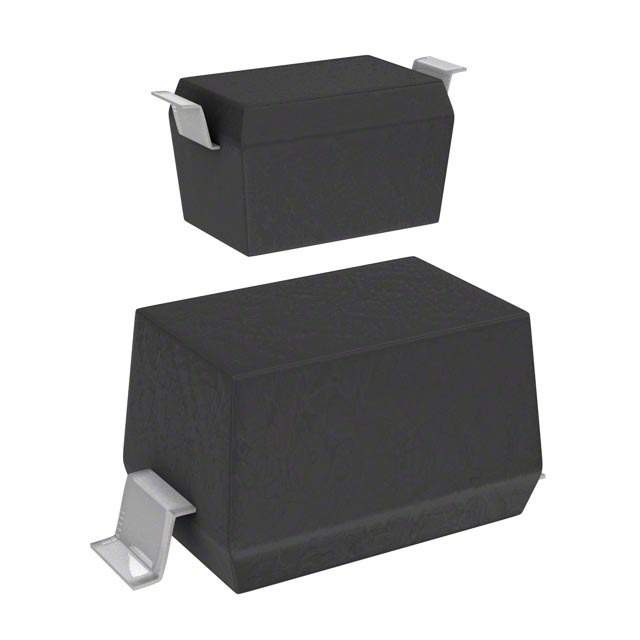

CPDH5V0P-HF Real Image
Same model may have multiple batches, images only for reference.

CPDH5V0P-HF

Part No CPDH5V0P-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC SOD523
Datasheet
CPDH5V0P-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.6V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 39W
Applications General Purpose
Capacitance @ Frequency 3pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1030055-CPDH5V0P-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian CPDH5V0P-HF CAD Model

Description

The Comchip Technology CPDH5V0P-HF is a zener type integrated circuit.

  • Manufacturer: Comchip Technology
  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 5.6V
  • Maximum Clamping Voltage: 13V
  • Peak Pulse Current(Ippm): 3A (8/20μs)
  • Power Dissipation - Pd: 39W
  • Operating Temperature: -40°C to 150°C (TJ)
  • Quantity per Package: 8k pcs
