Same model may have multiple batches, images only for reference.

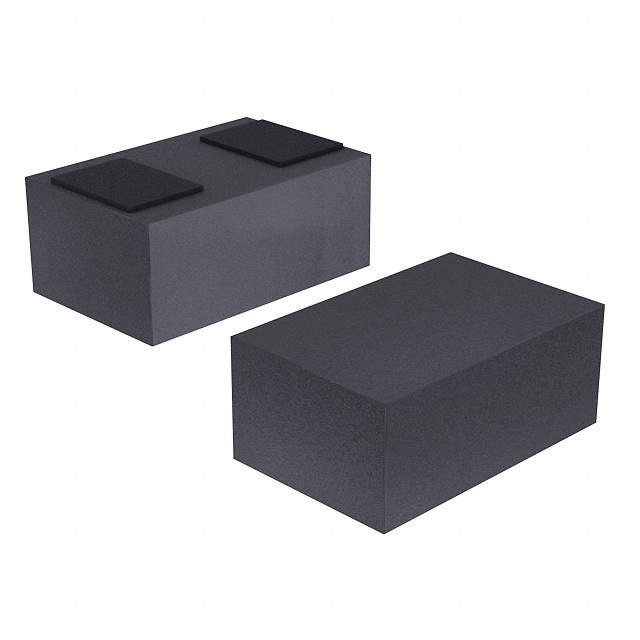

CPDQR5V0U Real Image
Same model may have multiple batches, images only for reference.

CPDQR5V0U

Part No CPDQR5V0U
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0402
Datasheet
CPDQR5V0U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 90pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030079-CPDQR5V0U
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR5V0U CAD Model

Description

The CPDQR5V0U is a unidirectional zener diode from Comchip Technology designed for use in a wide range of electronic applications.

  • Mounting Type: Surface Mount
  • Power Rating: 200W
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Applications: Voltage regulation, surge protection, and reverse voltage protection
