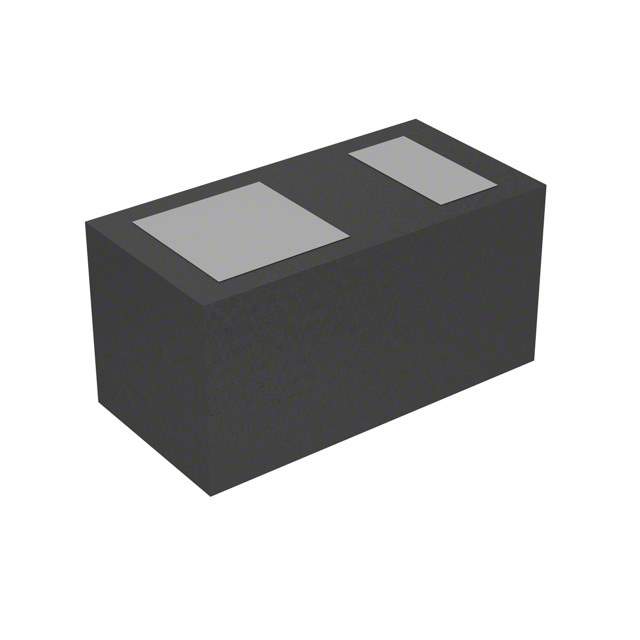

CPDZ9V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDZ9V0U-HF

Part No CPDZ9V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 9VWM 17.5VC 0201
Datasheet
CPDZ9V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 9V (Max)
Minimum Breakdown Voltage 10V
Max Clamping Voltage 17.5V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 35W
Applications General Purpose
Capacitance @ Frequency 14pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0201/DFN0603
Win Source Part Number 1030132-CPDZ9V0U-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CPDZ9V0U-HF CAD Model

Description

The CPDZ9V0U-HF is an electronic component manufactured by Comchip Technology.

  • Supply and Demand Status: balanced
  • Component Type: zener diode
  • Stand-off Voltage: 9V
  • Minimum Breakdown Voltage: 10V
  • Maximum Clamping Voltage: 17.5V
  • Peak Pulse Current: 2A
  • Package: 0201/DFN0603
  • Category: circuit protection
  • Application: various electronic applications
